Features:

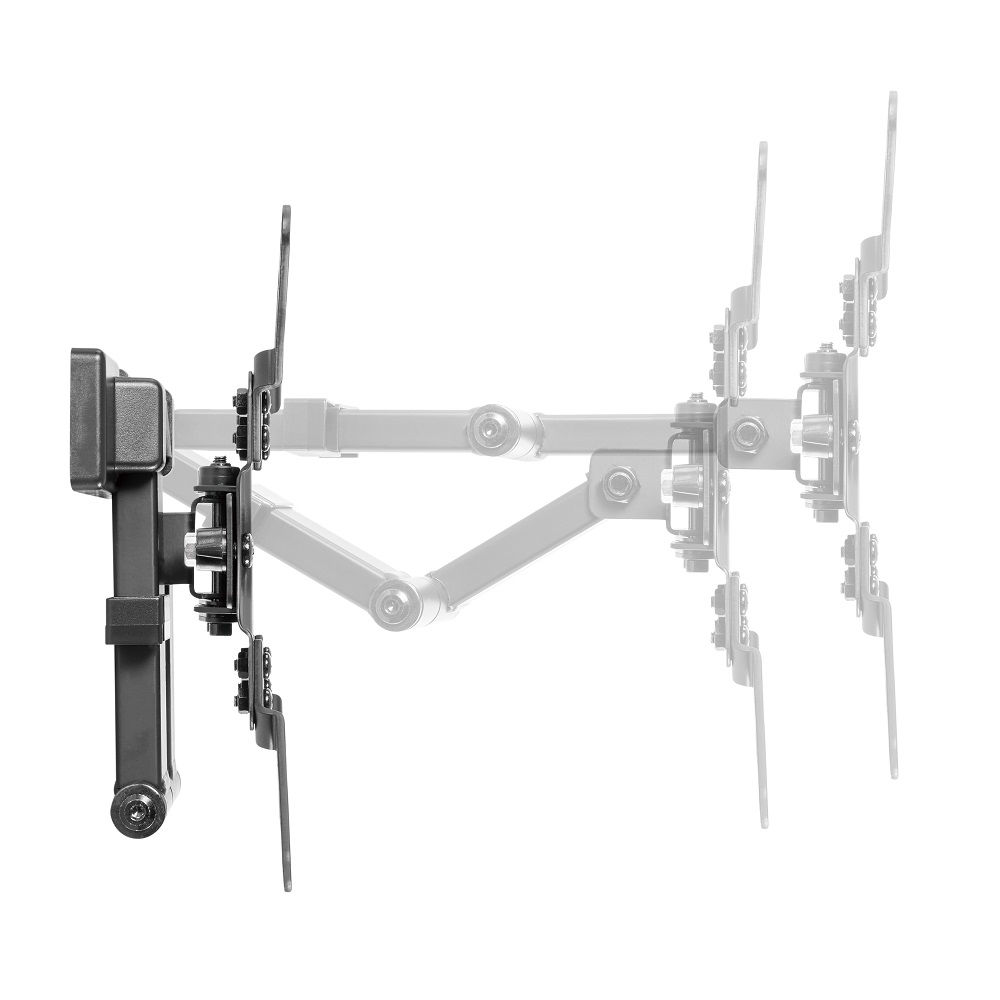

Full Motion Design - Tilts and swivels for multiple viewing angles.
Swiveling Arm - Offers maximum viewing flexibility.
Cable management hook allows you to easily keep cables out of view.
Detachable VESA plate design.

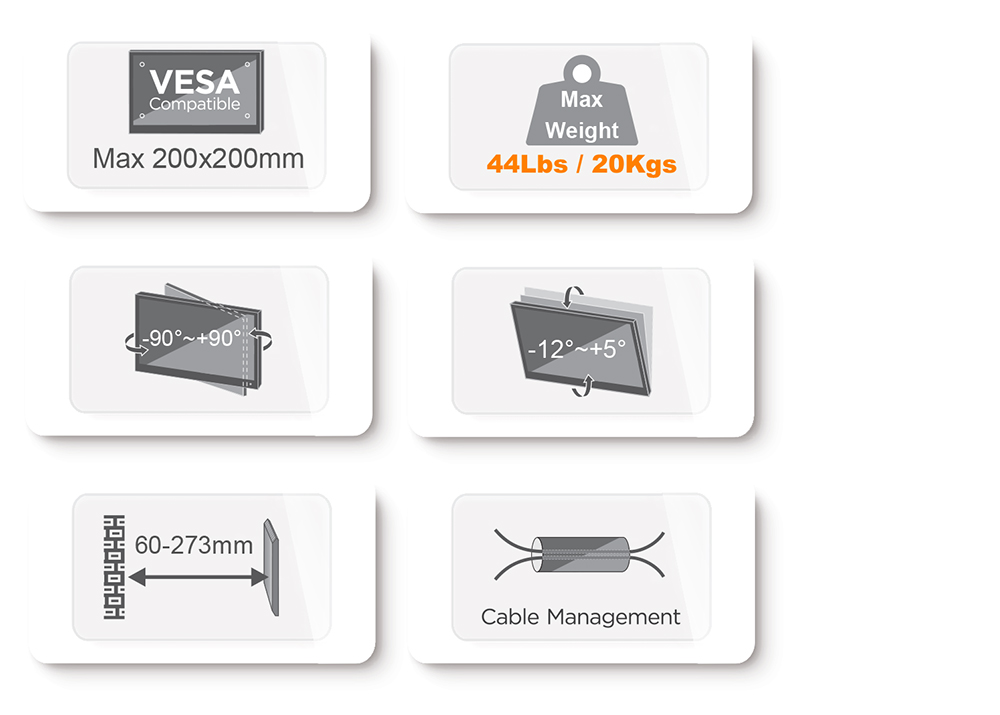

| Material | Steel, Plastic | ||
| Color | Matte Black | ||
| Surface Finish | Powder Coating | ||
| Metal Sheet Thickness | Wall Panel: 2.5mm Connection: 2mm |
||
| Compatible Screen Size * | 13"~42" | ||

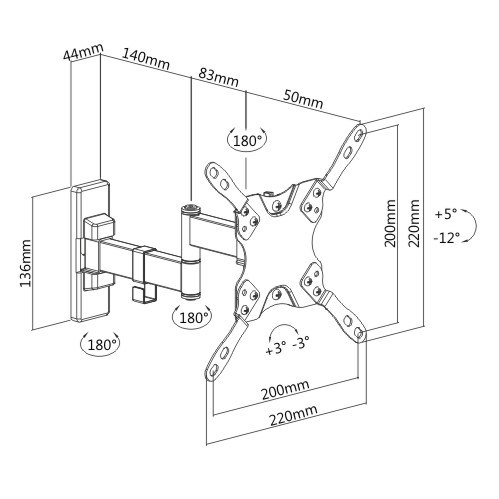

| Dimensions | 10.7"x8.7"x9" (273x220x228mm) | ||
| Max VESA | 8"x8" (200x200mm) | ||
| Weight Capacity | 44Lbs (20kg) | ||
| Arm Profile | 2.4"~10.7" (60~273mm) | ||
| Tilt Range | -12°~+5° | ||
| Swivel Range | -90°~+90° | ||
| Installation | Solid Wall, Single Stud | ||
| Panel Type | Detachable Panel | ||
| Wall Plate Type | Fixed Wall Plate | ||
| Cable Management | Yes | ||
| Anti-Theft | No | ||
* Note: Supported screen size is provided as a reference only. Please check the bracket dimensions above and make sure the overall bracket size does not exceed your TV.
