Networking Cat 6 A Plugs RJ45 plug with tail clamp for CAT6A 24AWG Armored Cable 50pack Jar

RJ45 plug with tail clamp for CAT6A 24AWG Armored Cable 50pack Jar SKU: 101414

1+
$37.99
5+
$37.24
20+
$36.50
Business Member Pricing

Warranty:

  • 30-day money back guarantee
  • 15% restocking fee after 30days.
  • Safe SSL encrypted shopping

Description

Data Sheet Spec Drawing

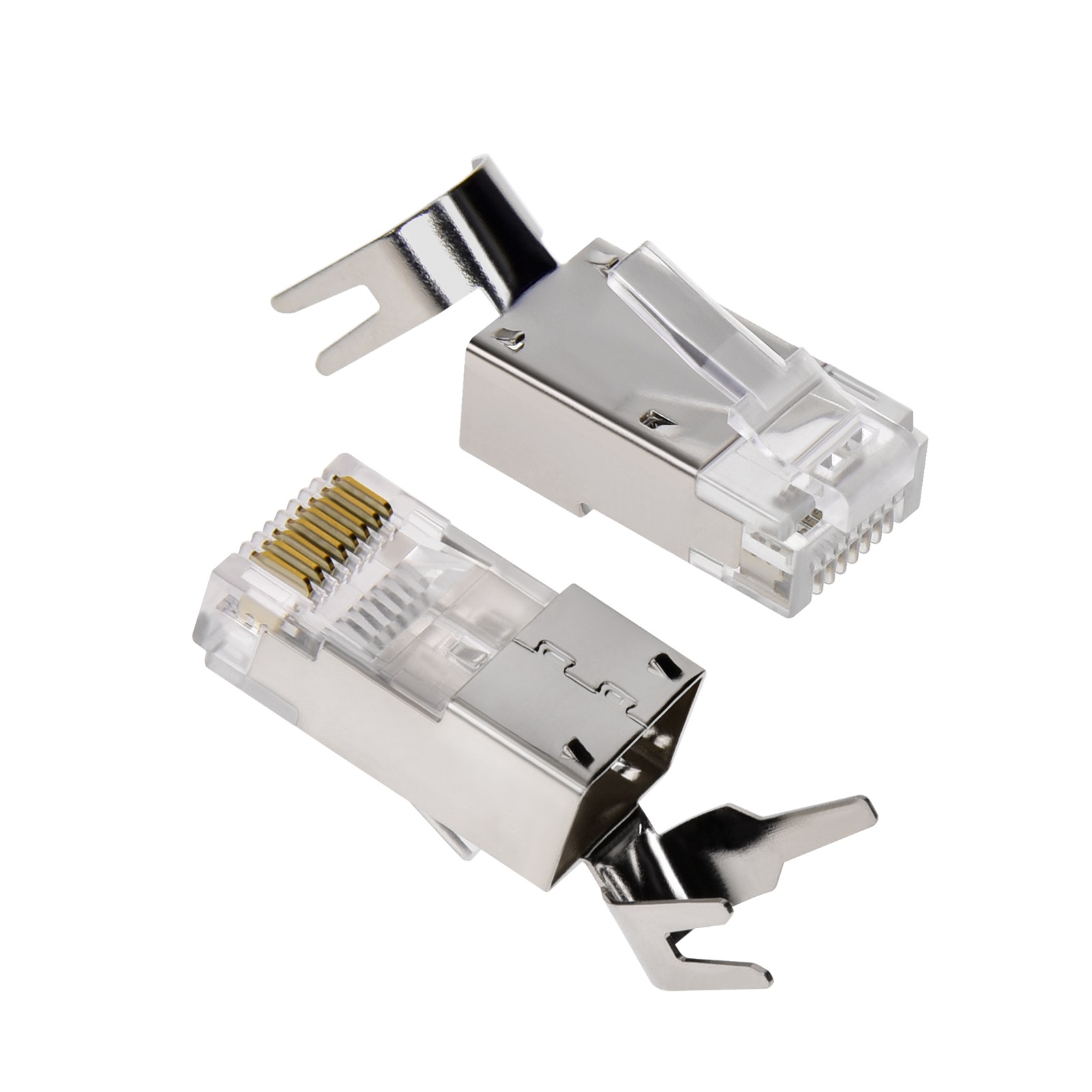

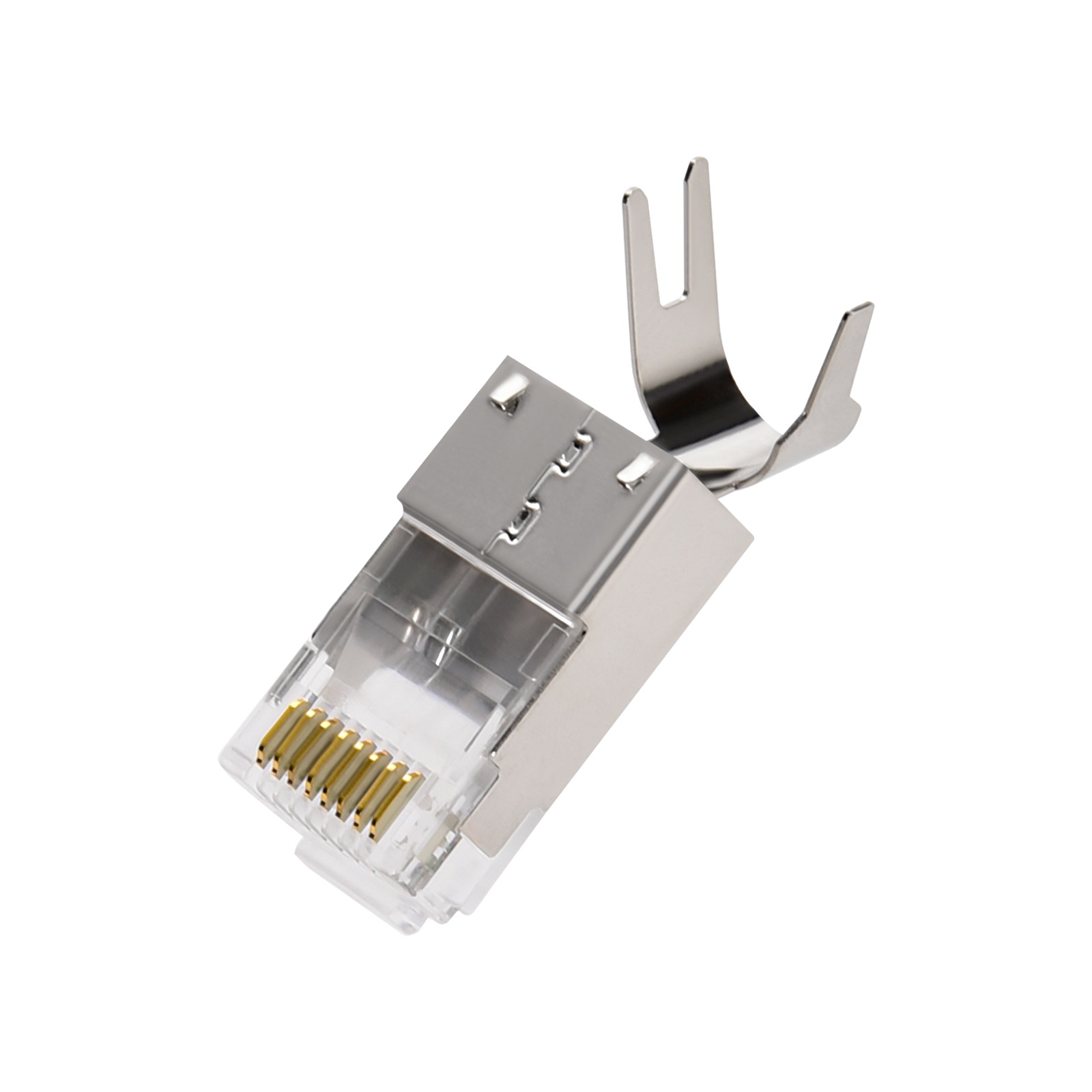

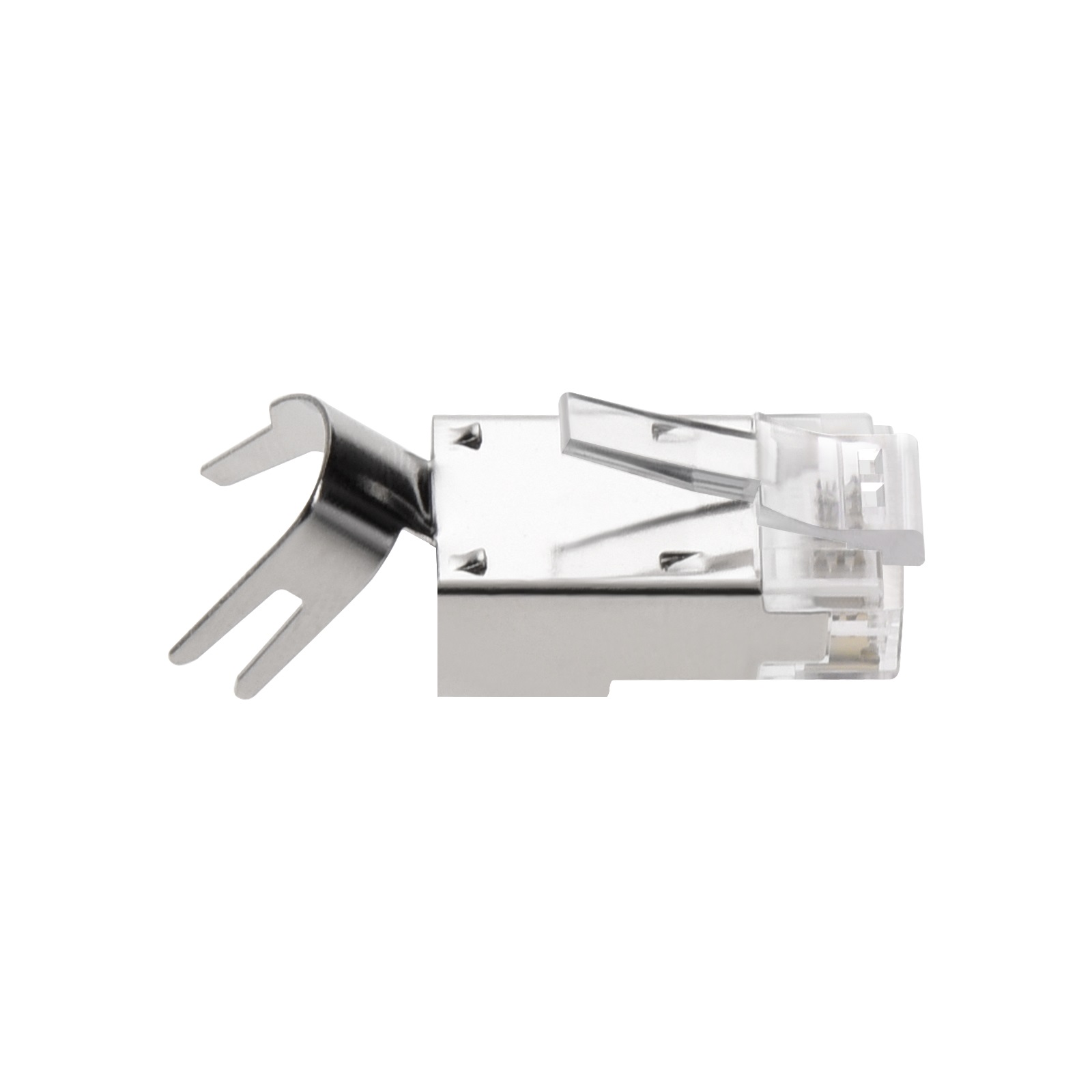

Complete your CAT6A cable installations with the RJ45 Plug with Tail Clamp, specially designed for 24AWG CAT6A Armored and Slim Cable applications. This shielded RJ45 connector provides a reliable and professional termination solution for high-speed Ethernet networks, structured cabling projects, and custom-length cable assemblies.

The tail clamp design provides enhanced cable support and strain relief, helping secure the cable jacket while reducing stress at the connector point. The shielded metal construction helps maintain signal performance and provides additional protection against electromagnetic interference (EMI), making it ideal for demanding networking environments.

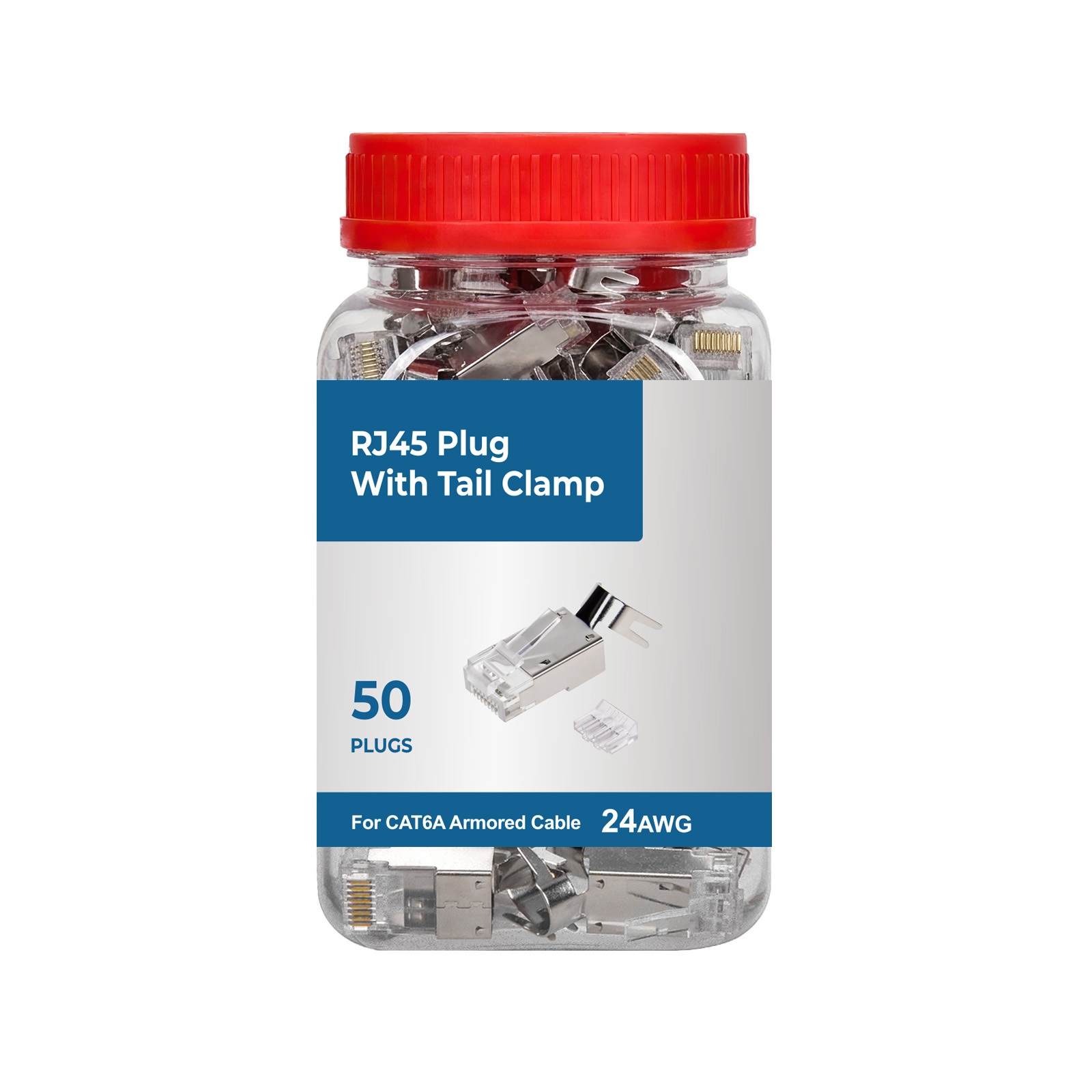

Each jar includes 50 RJ45 plugs, offering a convenient solution for installers, IT professionals, and technicians working on multiple cable termination projects.


Specifications:

  • Cable Compatibility: 24 AWG Armored Ethernet Cable
  • Wire Types: Compatible with Both Stranded and Solid Conductors
  • Contacts: 50-Micron Gold-Plated Contacts
  • Features: Load Bar and Tail Grip for Secure Termination
  • Load Bar Diameter: 1.06mm
  • Max Cable OD: 8.5mm
  • Durability: Rated for 750 Mating Cycles
  • Temperature Rating: -40°C to +80°C
  • Fire Rate: UL 94V-2

    • Applicable Cable:

    101030 (Cat6A 24AWG Stainless Steel Armored Bulk Cable)

    Applicable RJ45 Boots:

    101305 (RJ45 Boot for CAT6A 24AWG Armored Cable)

    Applicable Heat Shrink Tube:

    220406 (Heat Shrink Tube for Cat6A 24 AWG )
