Flat TV Back to Back 1.5" NPT Ceiling Dual Mount 200x200mm CE8-0522 SKU: 502867BK

Spec Drawing Aseembly Guide Large Image Packaging

Screen size	Max load	VESA hole pitch
Tilt	Swivel	Wall to TV

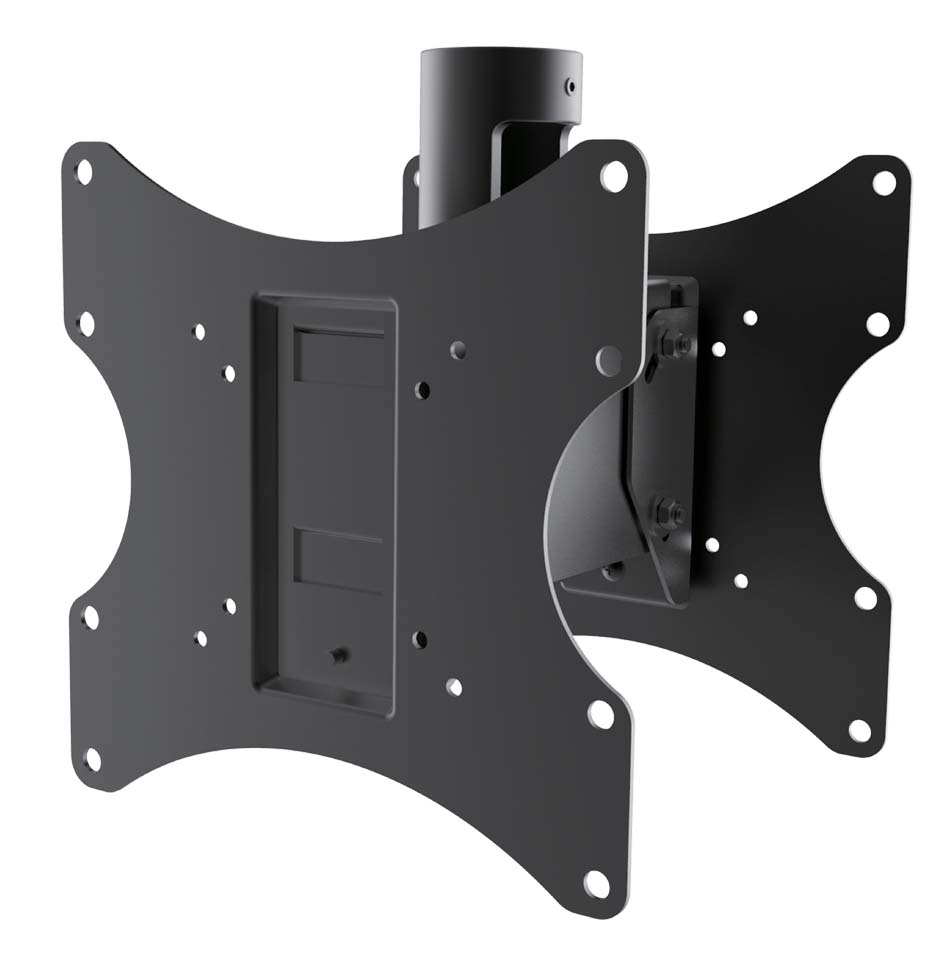

This ceiling brackett is designed to mount two LCD or LED TV back to back on 1-1/2" NPT (National Pipe Thread) standard pipe. Applicable screen size is 23" to 42", and it can be tilted down to 12 degrees.

* For 23 to 42" screen size LCD or LED TVNote: Supported screen size is provided as a reference only. Please check bracket dimensions above, and make sure overall braket size does not exceed TV.* Designed for 1.5" NPT pipe mount* Tilt angle: 5 degree up ~ +12 degree down* Max Load Capacity: 110lbs (50kg)* Universal mounting pattern* VESA hole pitch : Max: : 200 x 200mm (7.87" x 7.87")* Design and construction: Solid toughened steel construction* Durable scratch resistant finish in black* Cable management port* Mounting hardware included* Package weight: 7.6lbs* Package size: 9.5 (L) x 9.5 (W) x 8" (H)* Master cartonb qty: 4 units* RoHS compliant** 1 inch = 25.4mm, 1lbs = 0.454Kg **
