Smoke Detector Camera 420YVL 3.6mm Okina SSS-7420

Smoke Detector Camera 420YVL 3.6mm Okina SSS-7420 SKU: 500433

1+
$83.10
Out of Stock   ETA:TBD
Business Member Pricing

Warranty: 1 Year

  • 30-day money back guarantee
  • 15% restocking fee after 30days.
  • Safe SSL encrypted shopping

Description

SHS-7540DN & SSS-7420
Spec Sheet User manual

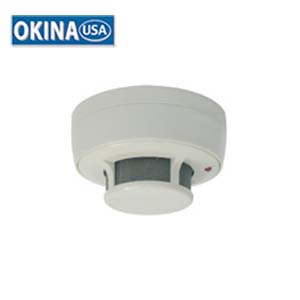

Smoke Detector Covert Color Camera
SHS-7540DN
SSS-7420
Features:
  • 1/3" Sony Super HAD CCD
  • 540 TV Lines, HQ-1 DSPSHS-7540DN
  • 420 TV LinesSSS-7420
  • 3.6mm Standard Lens
  • 0.5 Lux @ F2.0 SHS-7540DN
  • 0.3 Lux @ F2.0SSS-7420
  • 12V DC
Specifications:
Model SHS-7540DN SSS-7420
TV System NTSC
Image Sensor 1/3Sony Super HAD CCD
DSP Sony HQ-1 Sony
Total Pixels 811(H) x 508(V) 537(H) x 505(V)
Video Output 1 Vp-p Composite / 75 ohm
Resolution 540 TV Lines 420 TV Lines
Minimum Illumination 0.5 Lux @ F2.0
Color mode automatically switches to B/W mode under 2.0 Lux 		0.3 Lux @ F2.0
S/N Ratio More than 50dB (AGC OFF)
Electronic
Shutter Speed 		1/60~1/100,000sec
Synchronization Internal
White Balance AWB
Back Light Compensation Auto
Auto Gain Control Auto
Lens 3.6mm Standard Lens
Power Supply 12V DC
Power Consumption 1.7W / 142mA 1.1W / 92mA
Operation Temperature -10C ~ +50C
Operation Humidity RH 85% or less
Dimension 106.5mm(D) x 60.5mm(L)
Weight 220g
* Specifications are subject to change without notice
