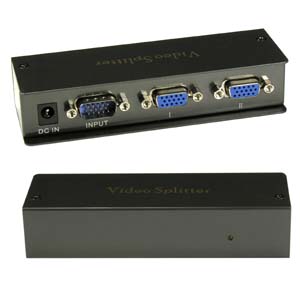

2Way VGA Splitter 350MHz Max 2048x1536 Resolution SKU: 291007

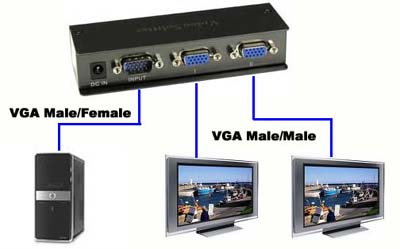

Spec drawing

The Video Splitter takes one video signal input and amplifies/duplicates the same signal on multiple monitors. It provides flexible and cost-effective solutions for Video Broadcasting and Remote monitoring at Airlines and Restaurants, Production and Industrial Control, Security companies, Schools and Training Centers...
etc.

* One video input to 2 video outputs
* VGA, SVGA, XGA and Multi Sync monitors
* Video bandwidth : 350MHz
* Video resolution, 2048 x 1536
* DDC and DDC2 support at Port 1
* Daisy-chainable
* Compact design with all metal casing

Specification:

* One Input to Two Outputs
* Input Connector: 1 x DB15HD Male
* Output Connector: 2 x DB15HD Female
* Max VGA cable length: 90Ft
* Max. Resolution : 2048 x 1536
* Bandwidth : (-3db) 350MHz
* Signal : VGA, SVGA, XGA, Multi, Sync
* Operating Temp : 0-40 degrees(Celsius)
* Storage Temp : -5-70 degrees(Celsius)
* Humidity : 0-80%RH,Non-condensing

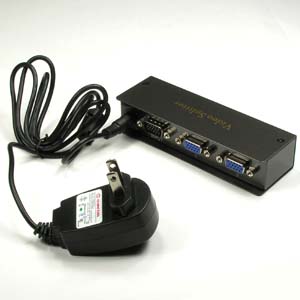

* DC Power Adapter : 5V 0.85A(included)
* Dim : 5" (L) x 1 5/8" (W) x 1"(H)
* Weight : 0.4Lbs
* VGA cable not included
