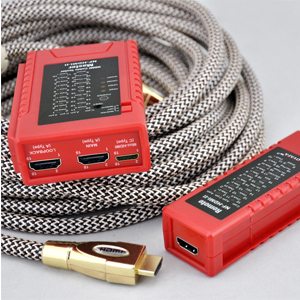

This HDMI Cable Tester quickly tests continuity of all HDMI features. Just plug in cable, it will instantly tell you if the cable passes or fails the continuity test. A must item for home theater installers or HDMI cable retailers.

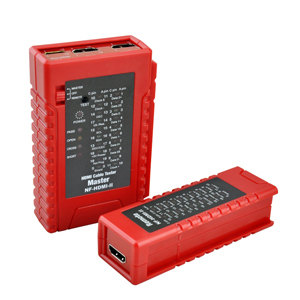

This tester has Type A connectors and Type C (mini) connectors. It can test both HDMI Type A and HDMI Type C cables without using adapters. Detachable remote unit is convenient for testing cables already installed in the wall. Powered by DC 9V battery.
1. Quick and accurate continuity testing of HDMI cables with type A-A, A-C, and C-C connectors.
2. Check pass, open, cross and short status of HDMI cables.
3. Mapping continuity and proper configuration.
4. 19 pins and ground connection and 4 status LEDs.
5. Capable of checking wiremap only with master unit.
6. Three test modes: Fast scan, slow scan, and step by step manual testing.

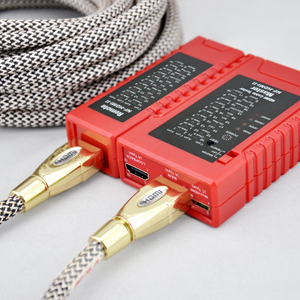

7. Design with loopback function.
8. Carry case
|
HDMI cables with type A and C connectorsconforming to 1.0, 1.1,
1.2, 1.2a, 1.3, 1.3a, 1.3b, 1.4, 1.4a, and Category 2 HDMI cables
without equalizer |
|
|
| 19 pins to pin wiremap and shielding detection |
|
|
Master: 2 x HDMI (type A) & 1 x Mini HDMI (type C), Remote: 1 x Type A & 1 x Type C
|
|
|
Fast/slow scan, step by step |
|
|
|
|
19 LEDs and shield LED on both master and remote unit. 4 LEDs for
pass, open, short, cross |
|
|
|
|
|
|
DC 9V battery (not included)
|
|
|
Operating temp: 0 to 40 degree Celcius, Storage temp: -10 to 50
degree Celcius, Max RH 70% |
|
|
Master unit: 103x66x24mm (4x2.6x1"), Remote unit:
103x35x27mm (4x1.35x1.06") |
|
