Networking Racks Wall-Mount Cabinets 6U 19" Wall-Mount Cabinet Rear Hinged Swing-Out, Glass Door 21.7" Depth Pre-Assembled

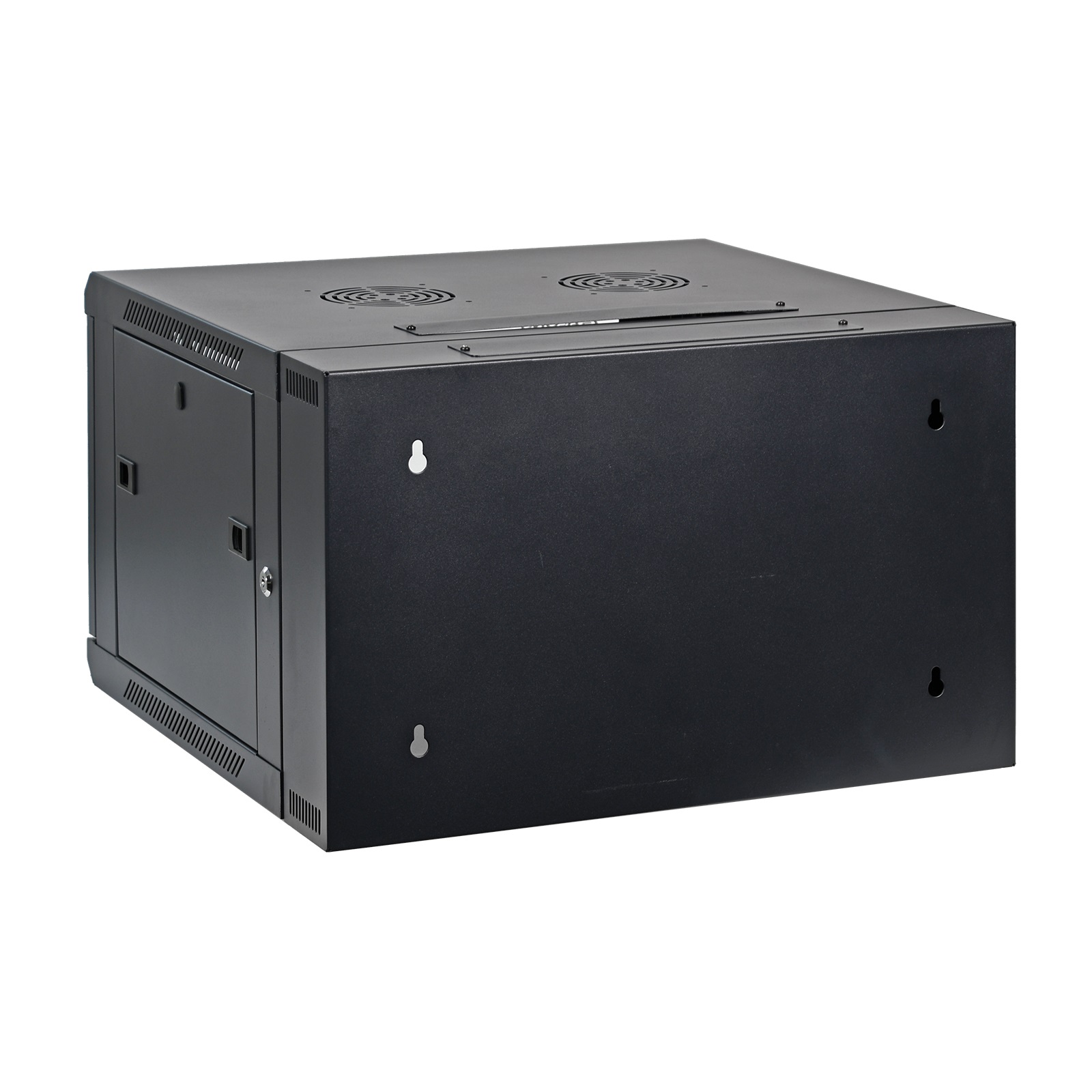

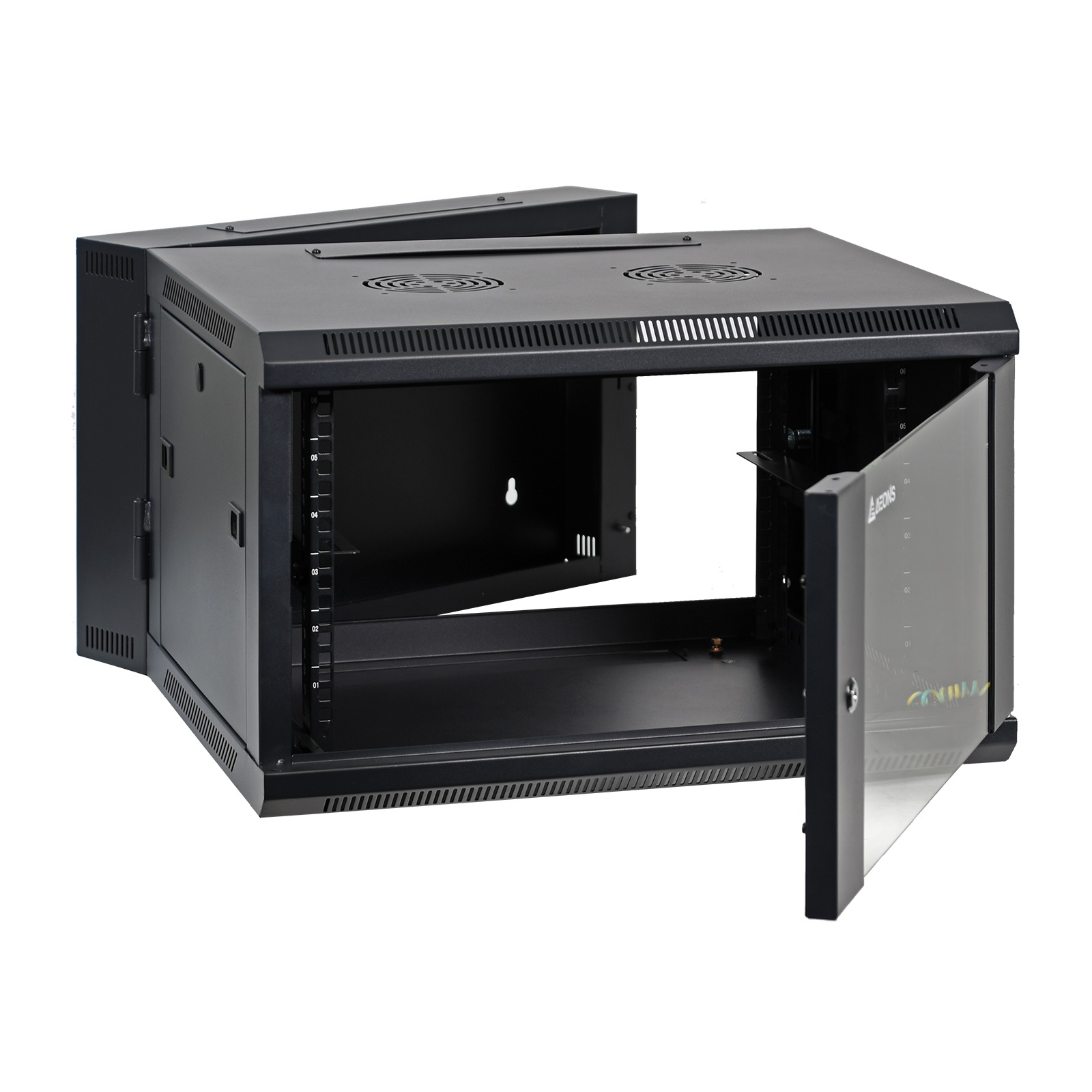

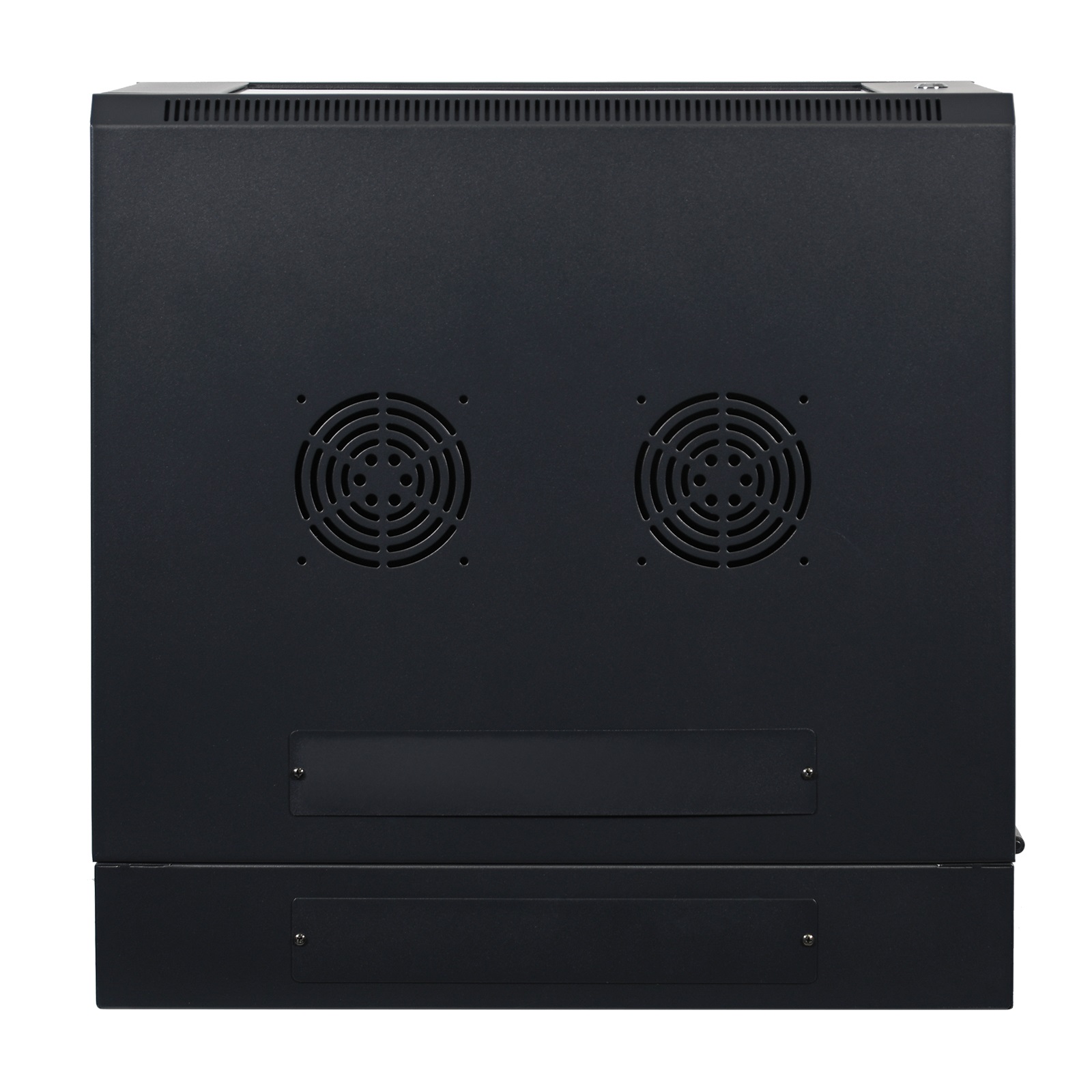

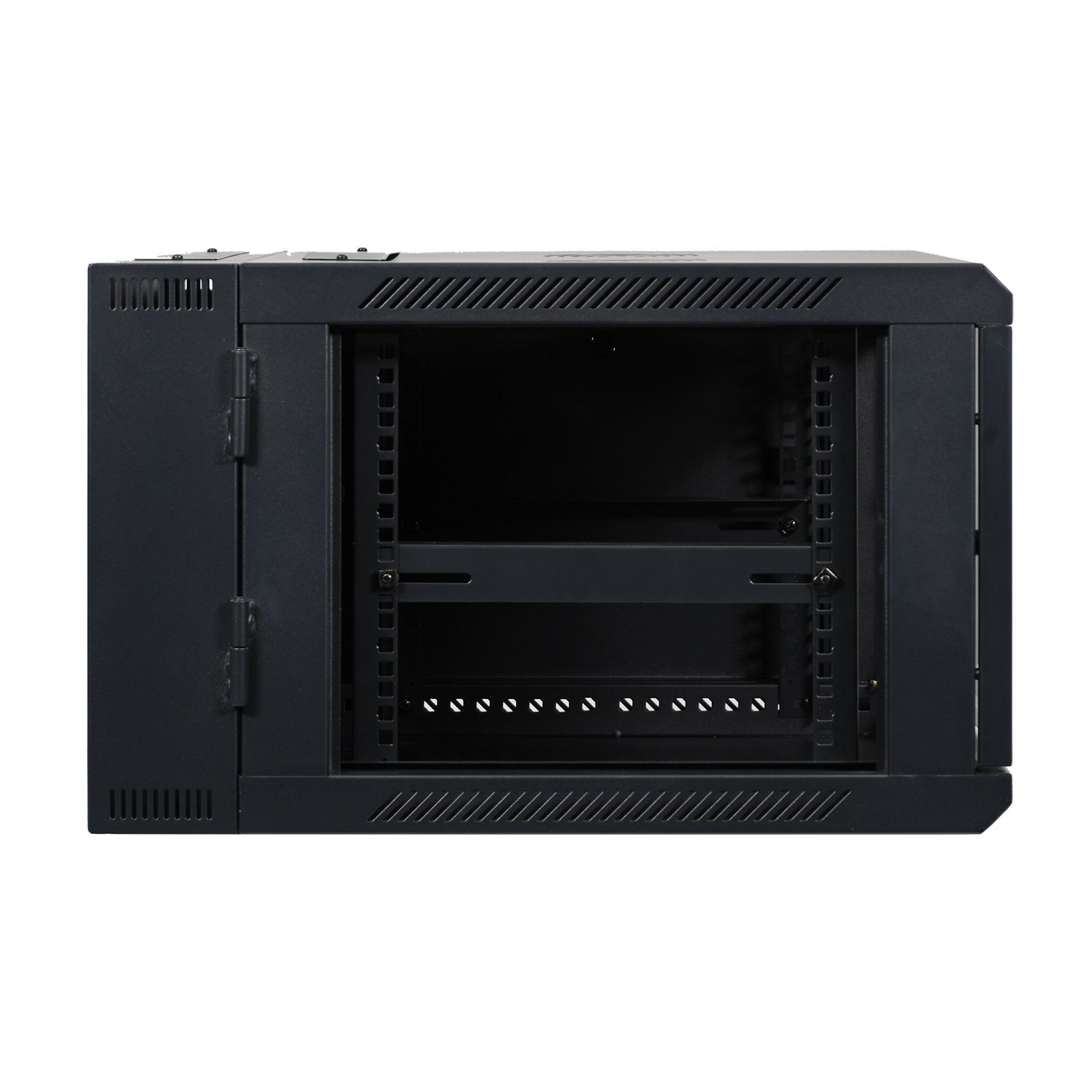

6U 19" Wall-Mount Cabinet Rear Hinged Swing-Out, Glass Door 21.7" Depth Pre-Assembled SKU: 104263

1+
$250.00
2+
$245.00
4+
$240.10
Business Member Pricing

Warranty:

  • 30-day money back guarantee
  • 15% restocking fee after 30days.
  • Safe SSL encrypted shopping

Description

Data Sheet Assembly Guide


Signature SB-Series Double Section Swing-Out Wall Mount Cabinets offer a complete solution for mounting EIA-standard 19-
inch rackmount equipment in areas with restricted floor space, such as network closets, classrooms, and offices. These cabinets
hinge at the rear and can be swung away from the wall, providing easy access to equipment and cabling during installaon and
maintenance. The front and rear doors of the cabinet can be locked securely, and the vented frames and optional cooling fans
provide optinal air ventilation. Ships fully assembled for quick installation.


Features:

  • Fits rack equipment up to 21.7 in deep.
  • Maximum load capacity of 132 lbs.
  • Swing away from wall on hinge for easy access to the rear of equipment.
  • Reinforced lockable door and main chassis for increased security.
  • Removable door and side panel.
  • Cable pass-through on top and bottom.
  • Rugged welded structure with ventilation at front, sides, top and bottom.

    Specs:

    Type:Enclosure
    Style:Wall-Mount
    Rack Height:6U
    Rack Depth (in. / mm): 23.6 / 600
    Maximum Device Depth (in. / mm):21.7 / 550
    Front Door Type:Tempered Glass
    Load capacity (lbs / kg):132 / 60
    Number of vertical mounting rails:4
    Number of L brackets:2
    Shelves:No
    Cable access:Top, Bottom, Rear
    Unit Dimensions (H x W x D / in.):23.5 x 23.5 x 14.5


    Due to the dimensions of the box, Dimensional Weight Rates will apply for this item. What is Dimensional Weight?

    ** Free freight does NOT apply to this item. **
