Fiber Optic Products Pigtails 3m 12-Fiber SC/UPC Singlemode Flat Ribbon Pigtail Yellow

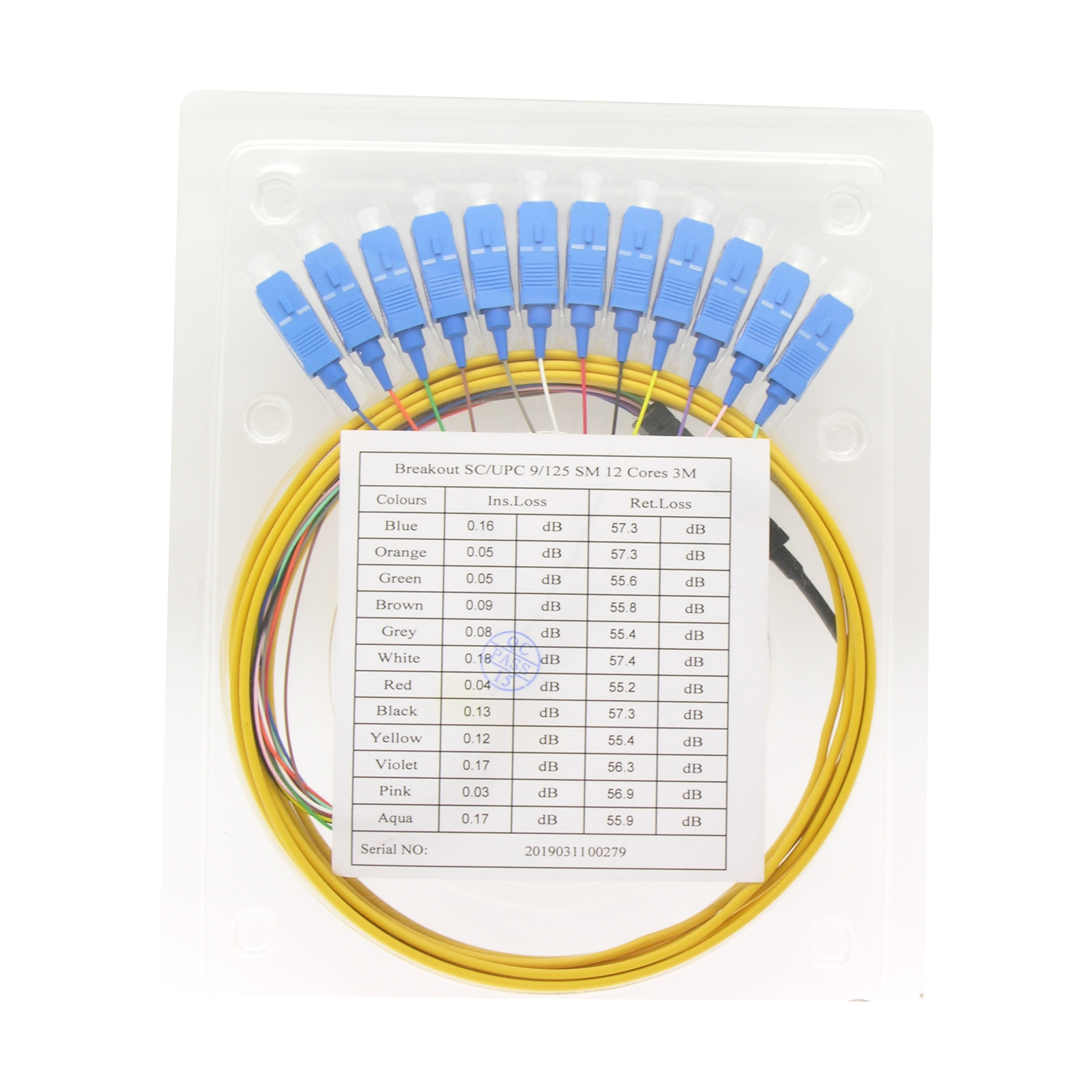

3m 12-Fiber SC/UPC Singlemode Flat Ribbon Pigtail Yellow SKU: 104028

1+
$18.26
4+
$17.89
8+
$17.53
Business Member Pricing

Warranty:

  • 30-day money back guarantee
  • No restocking fee for 6 months
  • Safe SSL encrypted shopping

Description

Spec Drawing

12 Fiber Ribbon jacketed pigtails with SC-UPC connectors are ideal for fusion splicing with ribbon-type cables, our fiber pigtails are quality tested to meet fiber industry standards and the most stringent performance specifications.


Features:

* Low insertion loss
* Low back reflection loss
* Ideal for telecommunication networks
* Meets ISO9001, ROHS and Bell Core GR 326-core standards


Connector type       SC SM
Polishing           UPC
Fiber count           12
Length           3.0m
Ferrule material           Ceramic (zirconia)
Temperature range           -20°C +70°C
OD           5.0mm*2.5mm
Return loss           ≥ 55 dB
Insertion loss           Max. 0.30db, Typical < 0.20db
