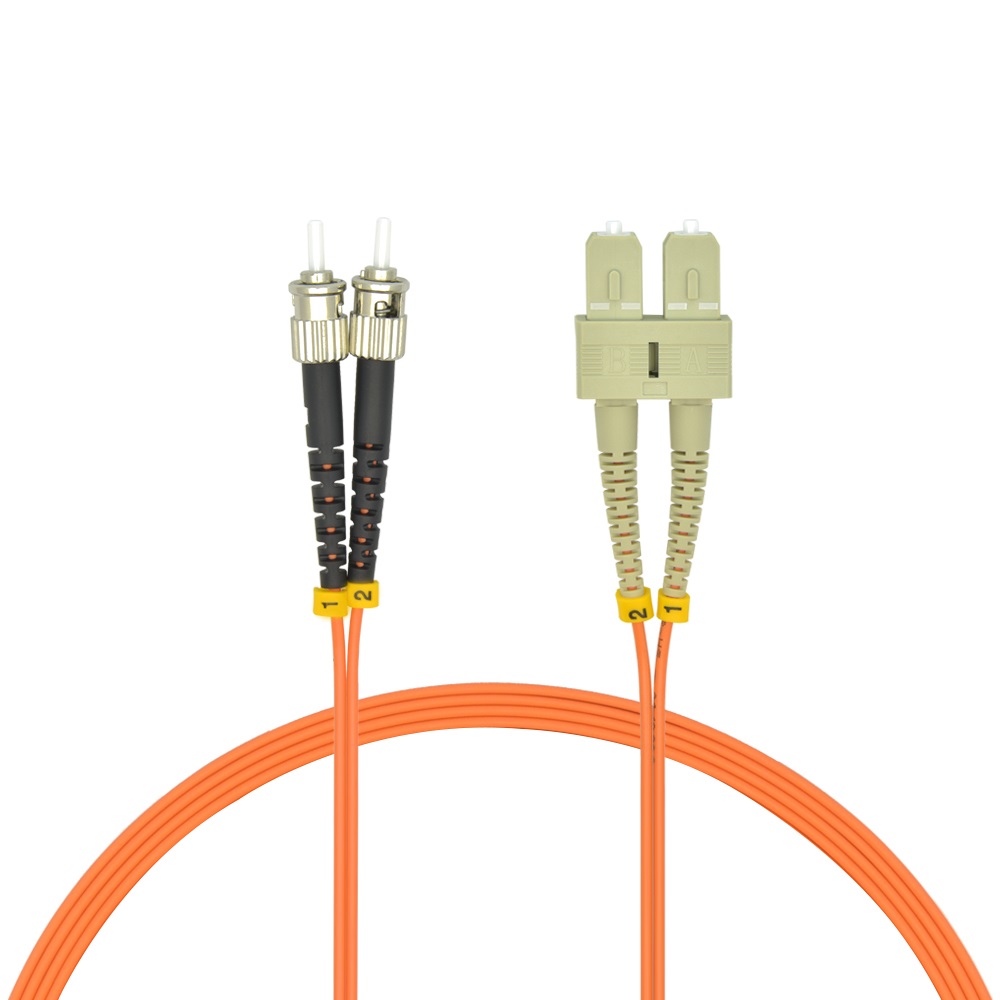

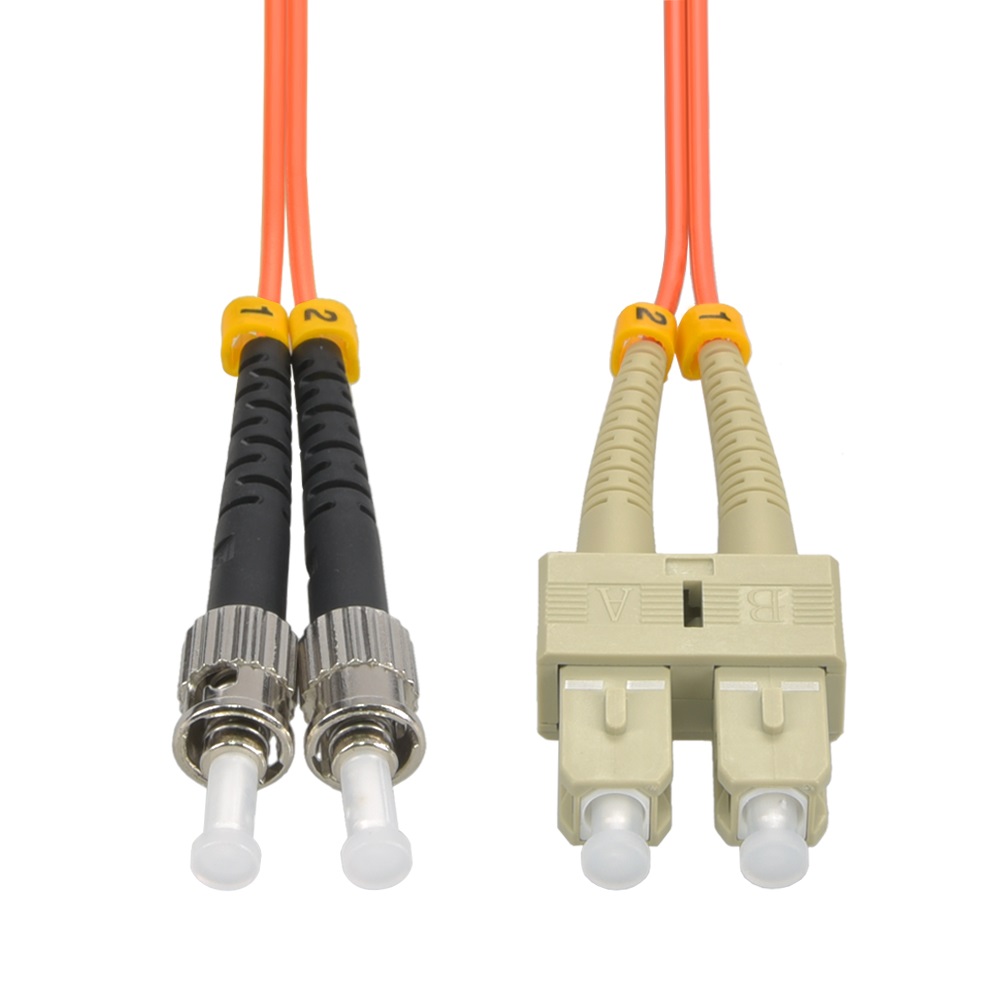

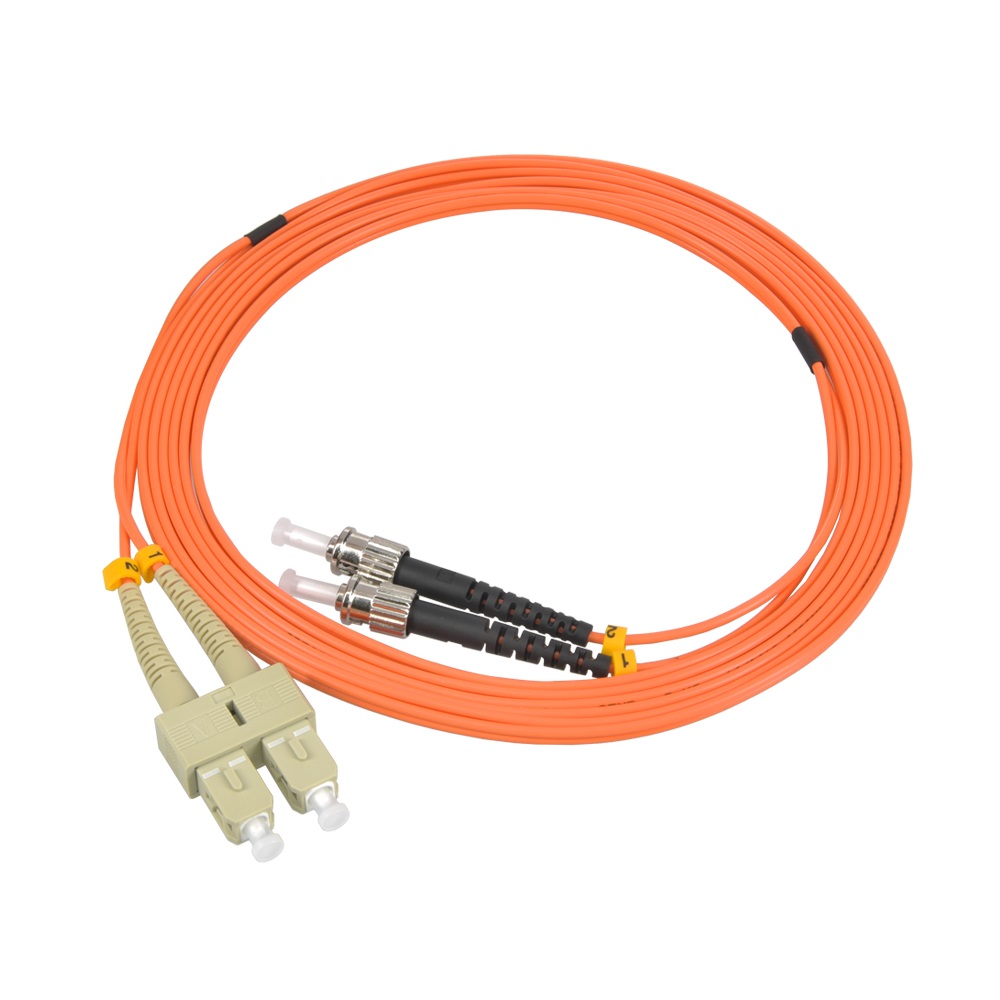

5m ST/UPC-SC/UPC OM1 Multimode Duplex Fiber Optic Patch Cable SKU: 102705
Base
TS (12%)
Total
1+
$6.06
$0.73
$6.79
10+
$5.94
$0.71
$6.65
40+
$5.82
$0.70
$6.52
TS: Tariff Surcharge (12% for Non-China)
Business Member Pricing
Warranty: Life Time
- 30-day money back guarantee
- 15% restocking fee after 30days.
- Safe SSL encrypted shopping
Description

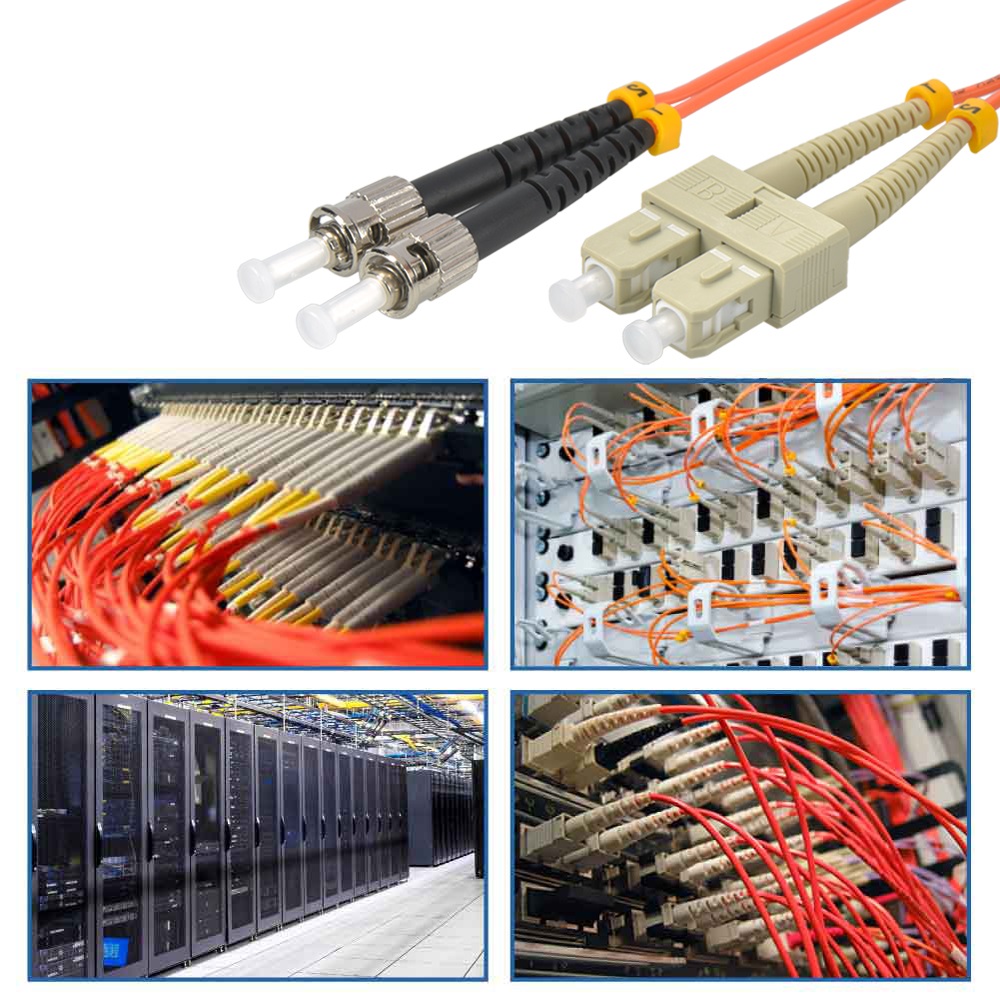

* Used to connect patch panels and/or network devices that utilize duplex SC to SC style connectors and require OM1 62.5/125 multimode cabling.
* 100% tested
* Test report included in each cable
| Connector Type | ST-SC Multimode | ||
| Polishing | UPC | ||
| Return Loss | 55dB | ||
| Insertion Loss | 0.30dB | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Cabled Optical Fiber | OM1 | ||
| Nominal Diameter Core | 62.5/125 µm | ||
| Jacket Material | OFNR/LSZH | ||
| Operation Temperature Range |
-20°C +70°C |
