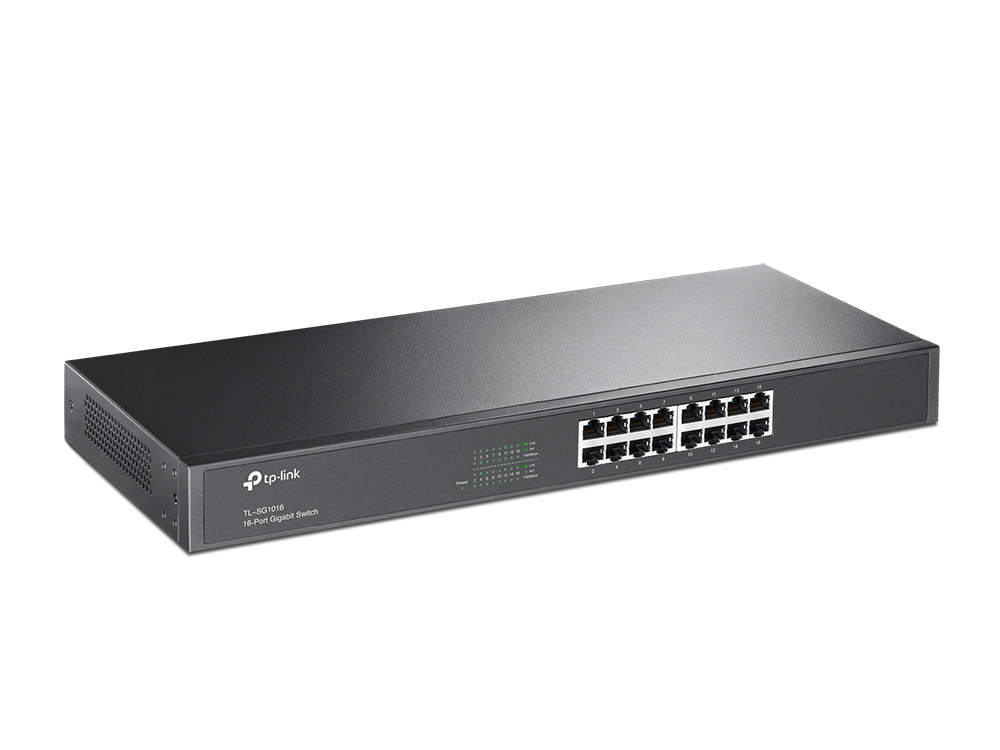

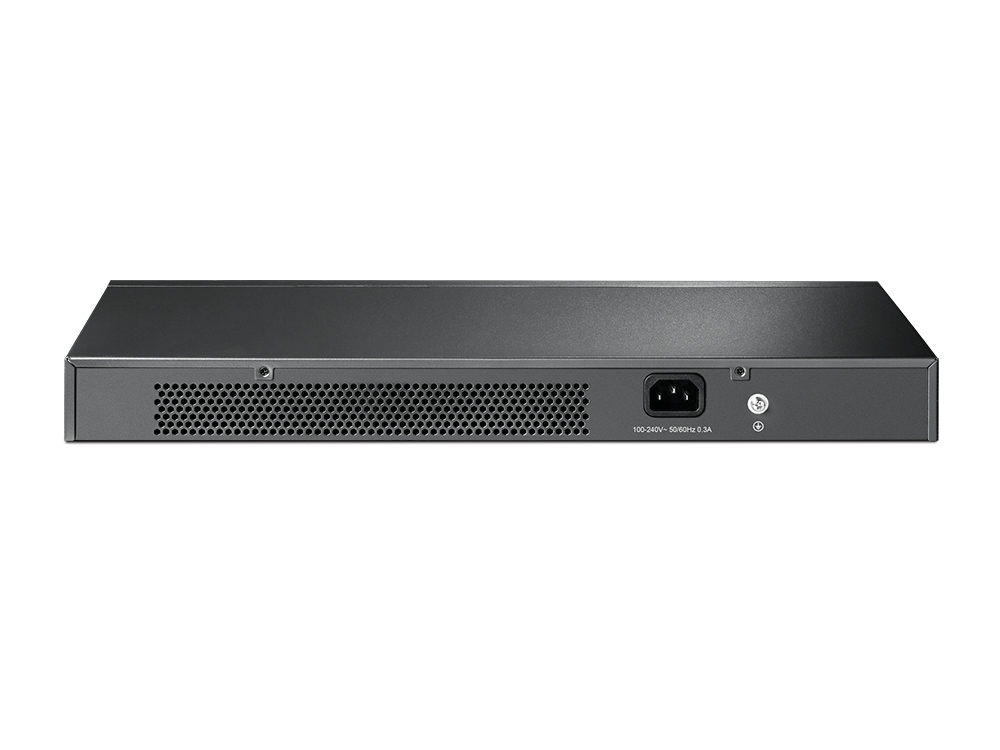

16Port 10/100/1000Mbps Rackmount Gigabit Switch (TP-Link SG1016) SKU: 102310
1+
$83.35
Business Member Pricing
Warranty: 1 Year
- 30-day money back guarantee
- 15% restocking fee after 30days.
- Safe SSL encrypted shopping
Description
TP-Link Product Page: SG1016
The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save on power consumption, making it an eco-friendly solution for your business network.
Features:
Standards and Protocols |
IEEE802.3, 802.3u, 802.3ab, 802.3x
CSMA/CD, TCP/IP |
Basic Function |
Wire-speed Performance |
MAC Address Auto-Learning and Auto-aging |
|
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode |
|
Backbound Bandwidth |
32Gbps |
MAC Address Table |
8k |
Forwarding Rate |
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-T: 1488000pps/port |
Transmission Method |
Store-and-Forward |
Ports |
16 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) |
Network Media |
EIA/TIA-568 100 ohm STP (maximum 100m)
100Base-Tx: UTP Cat.5E cable (maximum 100m)
EIA/TIA-568 100 ohm STP (maximum 100m)
1000Base-T: UTP Cat.5E cable (maximum 100m) |
LED Indicators |
Power, Link/Act |
Safety & Emission |
FCC, CE |
Dimensions (W*D*H) |
17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm) |
Environment |
Operating Temperature: 0C~40C (32F~104F) Storage Temperature: -40C~70C (-40F~158F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Power |
100-240VAC, 50/60Hz |
