Networking Patch Panels Cat.5E 110 Type Patch Panel 12Port Vertical w/Bracket

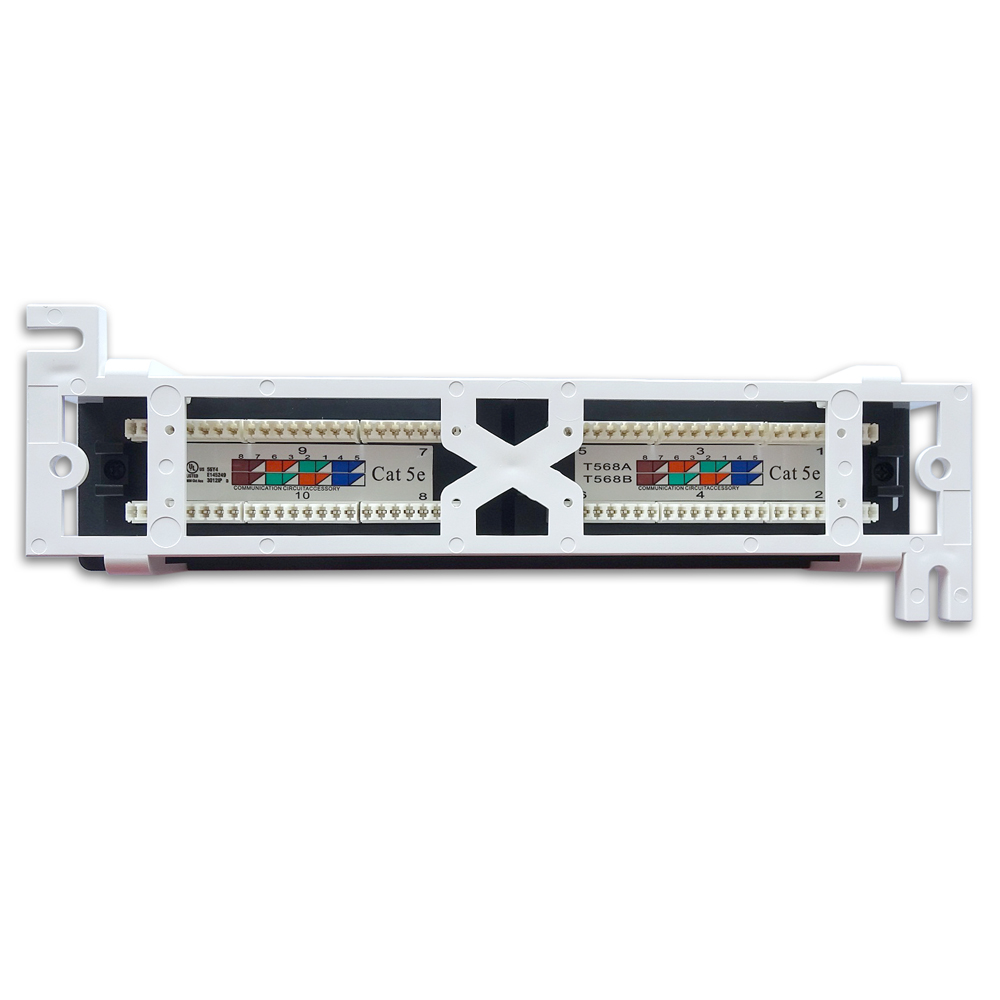

Cat.5E 110 Type Patch Panel 12Port Vertical w/Bracket SKU: 102195

1+
$14.63
5+
$14.33
20+
$14.05
Business Member Pricing

Warranty:

  • 30-day money back guarantee
  • 15% restocking fee after 30days.
  • Safe SSL encrypted shopping

Description

Spec drawing

  • Mounting Bracket Included
  • UL listed
  • Meets TIA/EIA-568B.2/568B.2-1 Cat.5E ISO/IEC 11801 and EN 50173-1 specification
  • Support T568A : B wiring
  • Wire diameter : 22 ~ 26AWG
  • Insulation diameter range : 0.70 to 1.40mm
  • Jack contacts : Phosphor bronze, 50micron gold plate over nickel plating.
  • IDC contacts : Phosphor bronze, 50micron gold plate over nickel plating.
  • Safty : UL1863
  • Flamability : UL 94 VO
  • Operating temperature : -40 to +70 dgree Celsius
  • Weight : 0.85LBS
  • 25 years warranty
  • Carton qty: 24
  • Carton weight: 23 LBS
  • Dimensions : 10"(H) x 2 1/4" (W) x 1 3/4" (D)
