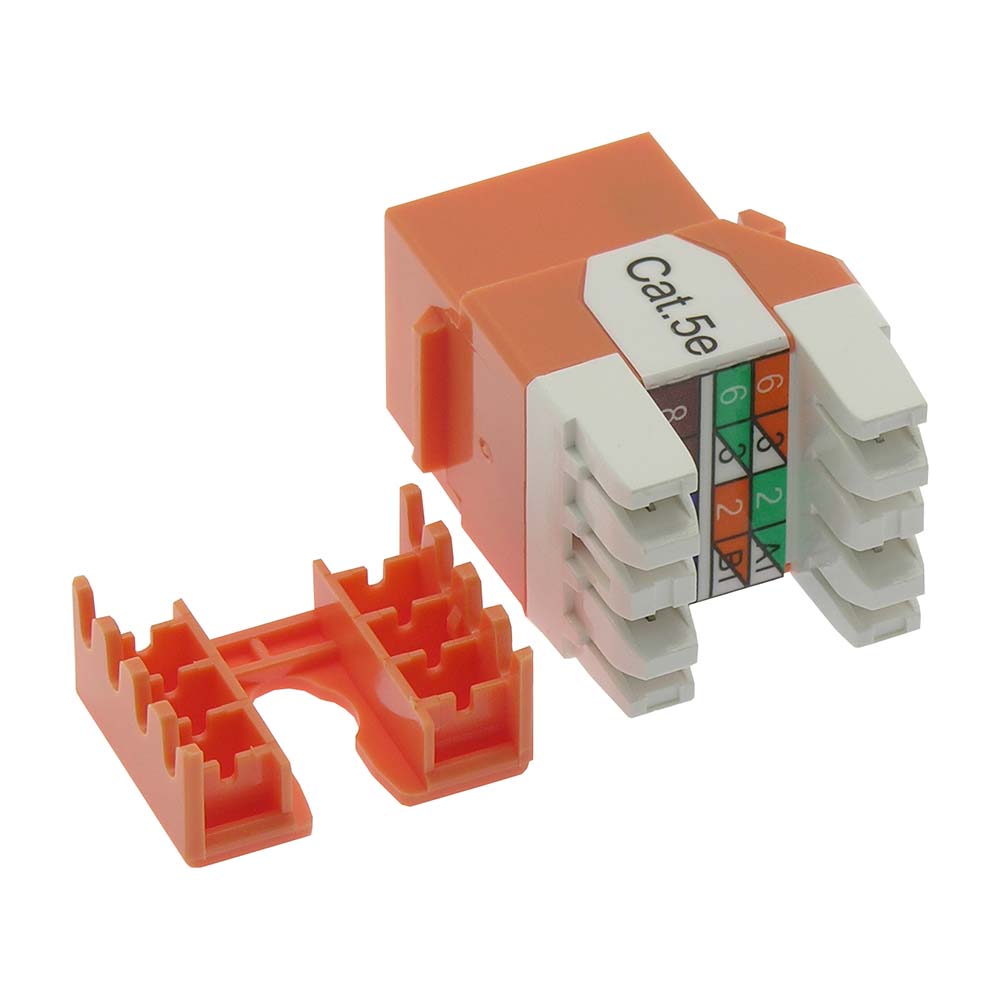

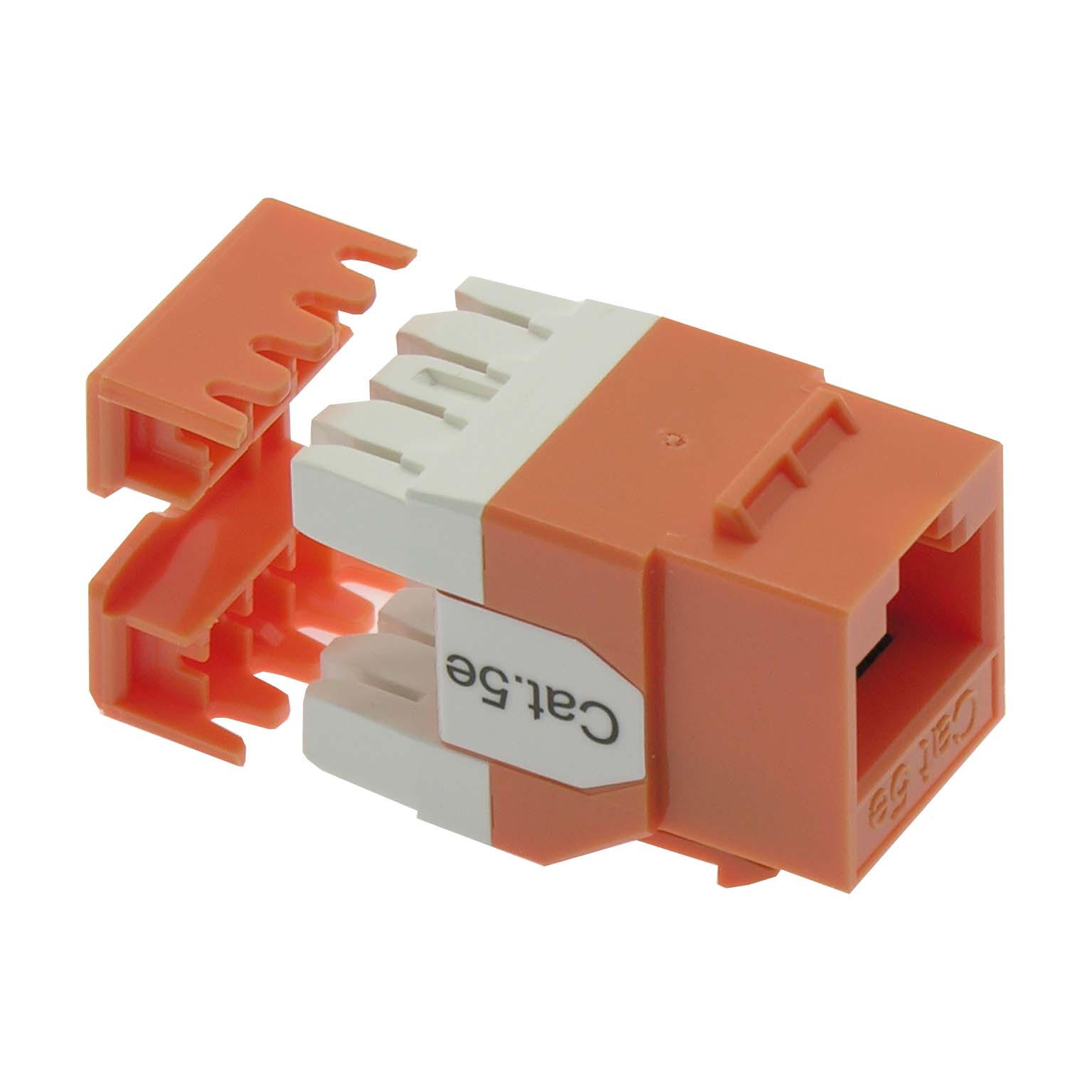

Networking Cat.5e Keystone Jacks Cat.5E RJ45 110 Type 180° Keystone Jack Orange

Cat.5E RJ45 110 Type 180° Keystone Jack Orange SKU: 101601OR

1+
$1.10
50+
$1.04
100+
$1.01
Business Member Pricing

Warranty:

  • 30-day money back guarantee
  • 15% restocking fee after 30days.
  • Safe SSL encrypted shopping

Description

Spec Drawing

Cat.5E RJ-45 110 Type 180 Degree keystone jack is 8-position 8-conductor (8P8C) and designed for computer networking. It is engineered to provide superior performance and reliability, supporting up to Gigabit Ethernet applications. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA/EIA Category 5e performance standards.

* RJ45 110 Type 180 Degree Termination
* CAT 5E rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
* PCB technology provides maximum performance and superior signal quality
* Terminate with 110 punch down tool
* 4 x 4 termination layout
* Includes an integrated TIA-568A/B color wiring diagram
* Backwards compatible to all lower rated category components
* Compatible with all BestLink Netware wallplates, surface mount boxes, and blank patch panels
* Works with all Bestlink Netware Ethernet patch cables
* Available in black, blue, gray, green, ivory, orange, red, white, and yellow
* Termination cap included
* Individually packaged
* UL listed

Material Flame Rating
UL 94V-0
Aplicable Wire Gauge
22AWG ~ 26AWG Solid and Stranded Wire
Jack Contacts
50 Micron Gold Plating, Operating Life: 750 Insertions
IDC Contacts
100 Micron Nickel Plating, Operating Life: 250 Reterminations
Wiring
T568A& B Compatible
Compatibility
Category 5 and 3
Safety Compliant
UL 1863, UL/cUL listed
Shield Cover (Shield Type)
50~60Micron Nickel Plating over Phosophor Blonze
Applications
10Base-T, 100Base-TX Fast Ethernet
