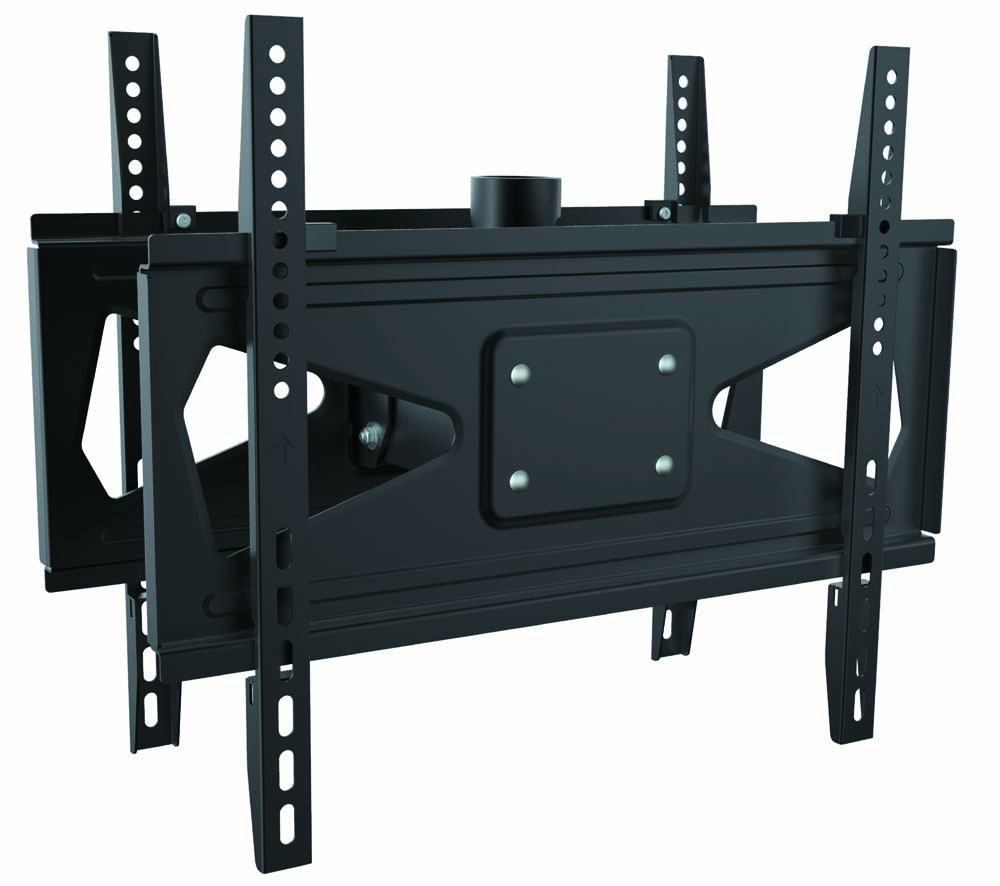

This ceiling brackett is designed to mount two LCD or LED TV back to back on 1-1/2" NPT (National Pipe Thread) standard p ipe. Applicable screen size is 32" to 55", and it can be tilted down to 12 degrees.

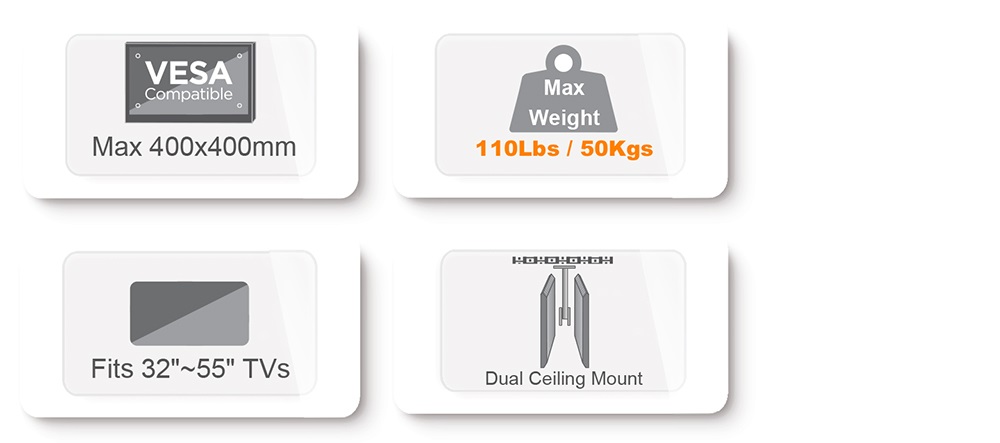

* For 32 to 55" screen size LCD or LED TVNote: Supported screen size is provided as a reference only. Please check bracket dimensions above, and make sure overall braket size does not exceed TV.* Designed for 1.5" NPT pipe mount* Tilt angle: 5 degree up ~ +12 degree down* Max Load Capacity: 110lbs (50kg)* Universal mounting pattern* VESA hole pitch : Max: : 400 x 400mm (15.75" x 15.75")* Design and construction: Solid toughened steel construction* Durable scratch resistant finish in black* Cable management port* Mounting hardware included* Package weight:19.2lbs* Package size: 24.5 (L) x 8.25 (W) x 4.5" (H)* Master cartonb qty: 2 units* RoHS compliant** 1 inch = 25.4mm, 1lbs = 0.454Kg **
