AC Line Splitter

SKU: 252038
Description: AC Line Splitter

Qty Unit Price
1+ $8.20
5+ $8.03
20+ $7.87
Quantity:

To calculate shipping cost;
1. Add items into shopping cart
2. Click on "CART" (go to Step1)
3. Enter your ZIP code in "shipping options"
4. Click "Get shipping Options"

Warranty:
* 30-day money back guarantee
* No restocking fee
* Safe SSL encrypted shopping
Share: mail facebook



Data Sheet


AC Line Splitter :

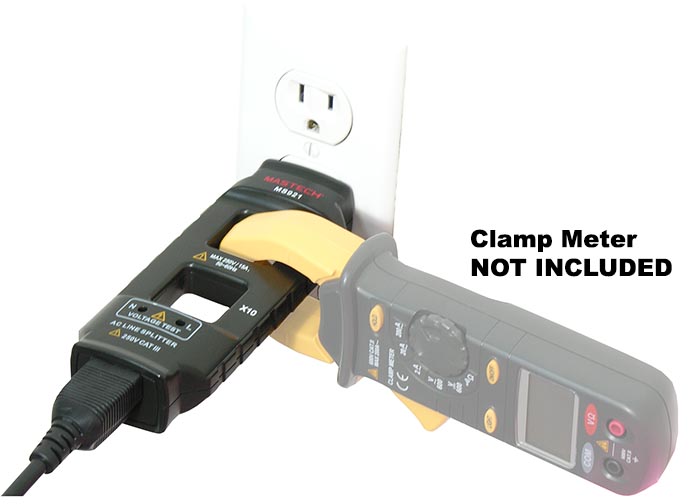

The AC Line Splitter is a essential accessory for
Clamp meters which can be used to measure current conveniently without breaking the insulation on equipment's power line. It can also be used to test the equipment's working voltage using a multimeter.


** CLICK HERE to buy your Clamp Meter**

Main Features:


* Allows for Easy AC Current Measurements Using a
Clamp  Meter on 2 or 3 Wire Power Cords
* Provides the Ability to Safely Measure Current without the need to cut or Separate Conductors
* Separates the Hot / Live Conductor from the Neutral and Ground
* Voltage check sockets for easy power calculations

Specs:



Specification
Range
AC Voltage
250V
AC Current
15A
X1 current terminal
Test actual working current
X10 current terminal
Test working current x 10

More Information:

* Safety standard conforms to IEC61010.
* Maximum input: AC 250V, 15A
* Operating temperature: 0~40°C; Humidity: ?90%
* Storage temperature: 10~50°C; Humidity: ?90%
* Dimensions: 161*57*31 mm
* Weight: approx. 106g
* Accessories: user's manual
* Safety rating: ETL CAT III 600V RoHS
