Description

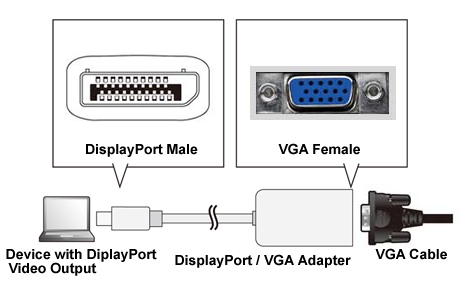

Spec drawing


The DisplayPort VGA adapter enable you to connect any VGA interface embedded device (Monitor, Projector...) with a DisplayPort interface (Desktop, Laptop).


* Compliance with DisplayPort Specification V1.1a at 1.62/2.7Gbps data rate (Low bit rate/High bit rate)
* Protocol: Support DPCD Rev.1.1 & Support HDCP 1.3 with HDCP key embedded
* Resolution: up to 1920X1200 / 1080p
* Connector DP male to VGA female
* Total Length: 7" (connector edge to edge)
* Connector housing dimensions:
VGA side: 3 (L) x 1-1/2 (W) x 3/4" (H)
DP side: 1-7/8 (L) x 3/4 (W) x 1/2" (H)
* Cable length: 1-1/2"
* Gold plated connector
* Housing and cable color : White
