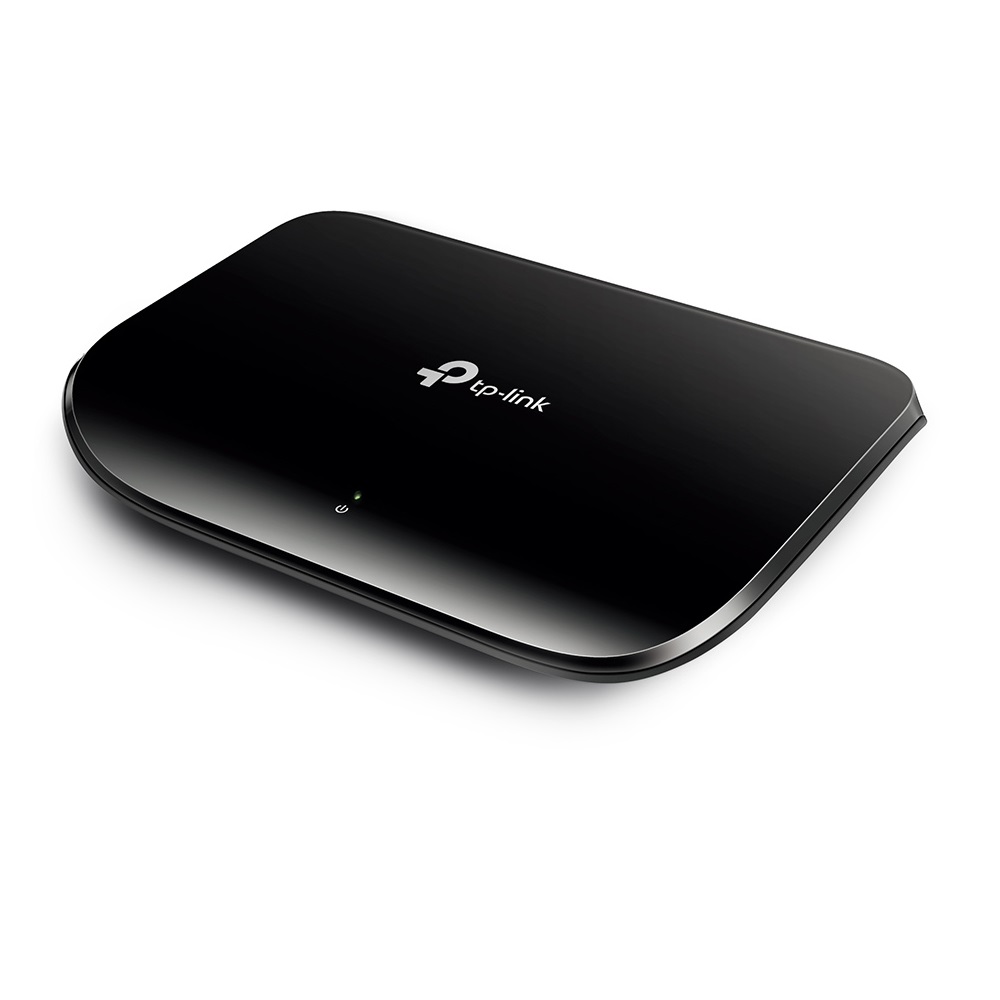

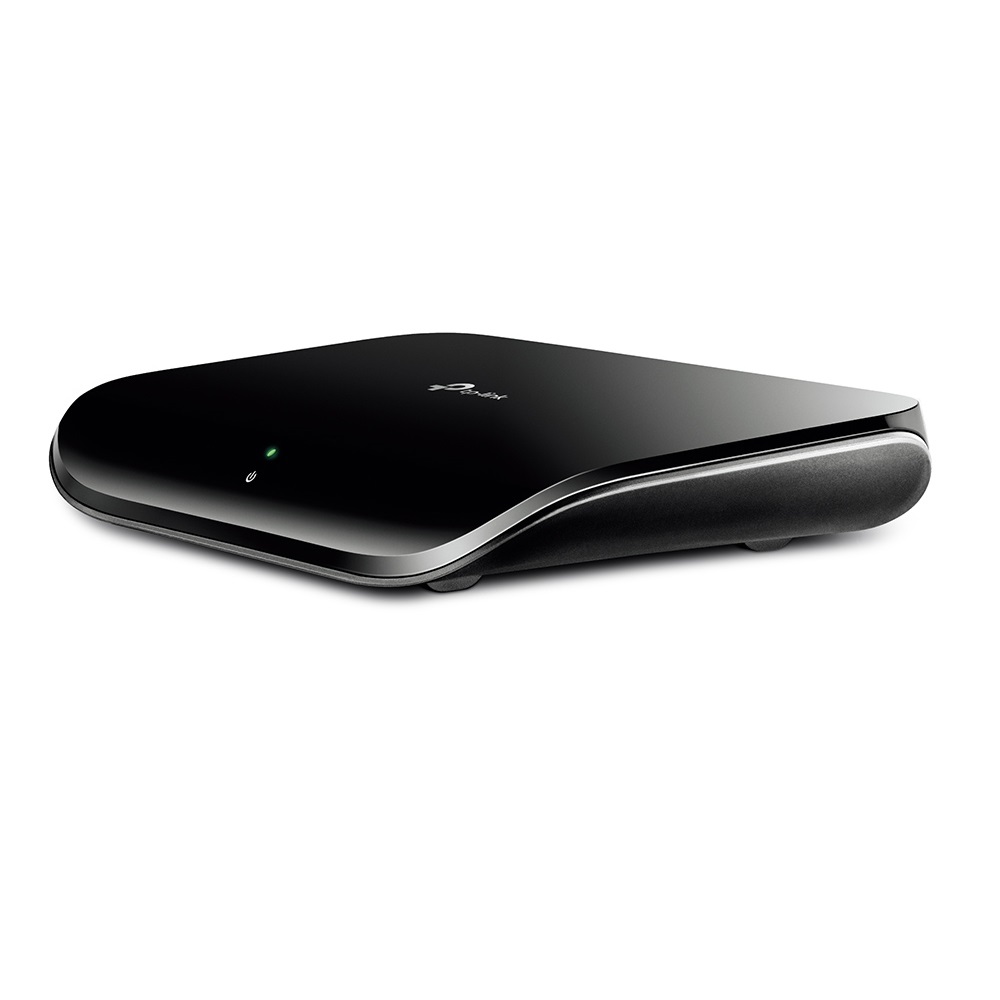

Networking 1G Unmanaged Switch 5Port 10/100/1000Mbps Descktop Gigabit Switch TP-Link SG1005D

5Port 10/100/1000Mbps Descktop Gigabit Switch TP-Link SG1005D SKU: 102319

1+
$20.80
4+
$20.30
12+
$19.95

Warranty: 1 Year

  • 30-day money back guarantee
  • No restocking fee
  • Safe SSL encrypted shopping

Description

TP-Link product page:SG1005D

The SG1005D 5-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files and other applications that have to move large files across the network almost instantly.

SG1005D adopts Green Ethernet technology. It can automatically power down ports that have no link, and budget power output for different cable length. With Green Ethernet technology, SG1005D can help you save power and network cost.

* Adopts Green Ethernet technology, saving power and cost
* Supports IEEE 802.3x flow control for Full-Duplex mode and backpressure for Half-Duplex mode
* Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
* Supports MAC address auto-learning and auto-aging
* Plastic case, desktop or wall-mounting design
* External power adapter supply (power supply inculded)

Standards and Protocols
 IEEE802.3, 802.3u, 802.3ab, 802.3x
 CSMA/CD, TCP/IP
Basic Function
 Wire-speed Performance
 MAC Address Auto-Learning and Auto-aging
 IEEE802.3x flow control for Full-Duplex Mode and
backpressure for Half-Duplex Mode
Backbound Bandwidth
 10Gbps
MAC Address Table
 1k
Forwarding Rate
 10BASE-T: 14880pps/port
 100BASE-TX: 148800pps/port
 1000BASE-T: 1488000pps/port
Transmission Method
 Store-and-Forward
Ports

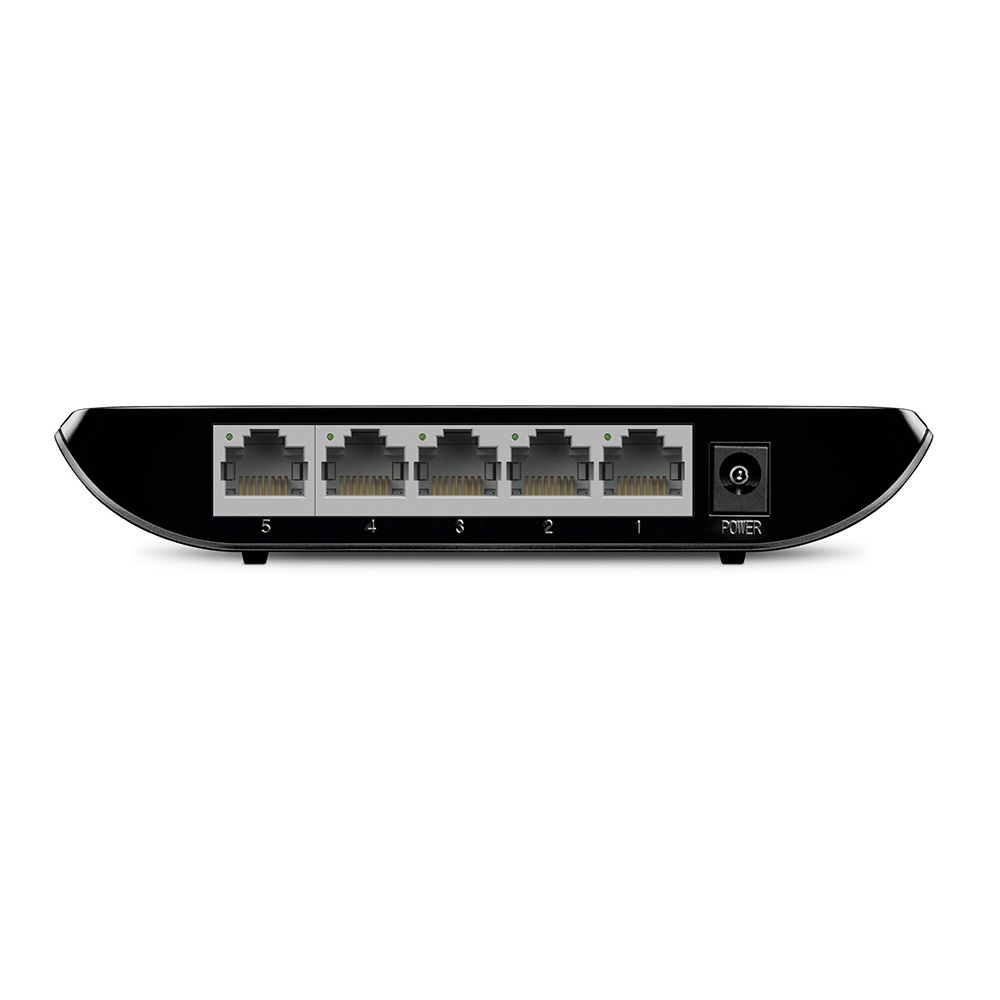

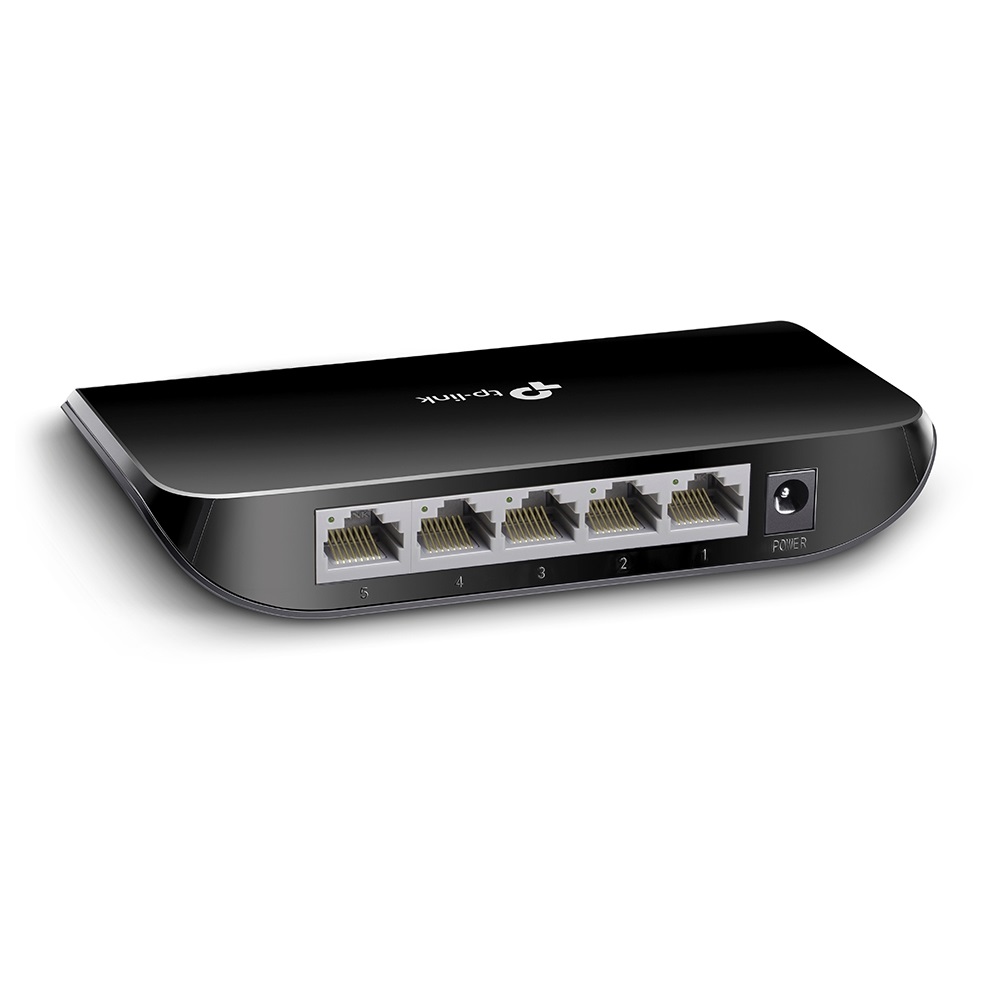

 5 10/100/1000Mbps Auto-Negotiation RJ45 ports
(Auto MDI/MDIX)
Network Media
 EIA/TIA-568 100 ohm STP (maximum 100m)
 100Base-Tx: UTP Cat.5E cable (maximum 100m)
 EIA/TIA-568 100 ohm STP (maximum 100m)
 1000Base-T: UTP Cat.5E cable (maximum 100m)
LED Indicators
 Power, Link/Act (100M, 1000M)
Safety & Emission
 FCC, CE
Dimensions (W*D*H)
 6.5 x 4.3 x 1.1 in. (165 x 108 x 28 mm)
Environment
<DIV> Operating Temperature: 0C~40C (32F~104F)
 Storage Temperature: -40C~70C (-40F~158F)
 Operating Humidity: 10%~90% non-condensing
 Storage Humidity: 5%~90% non-condensing
Power
 External Power Adapter
