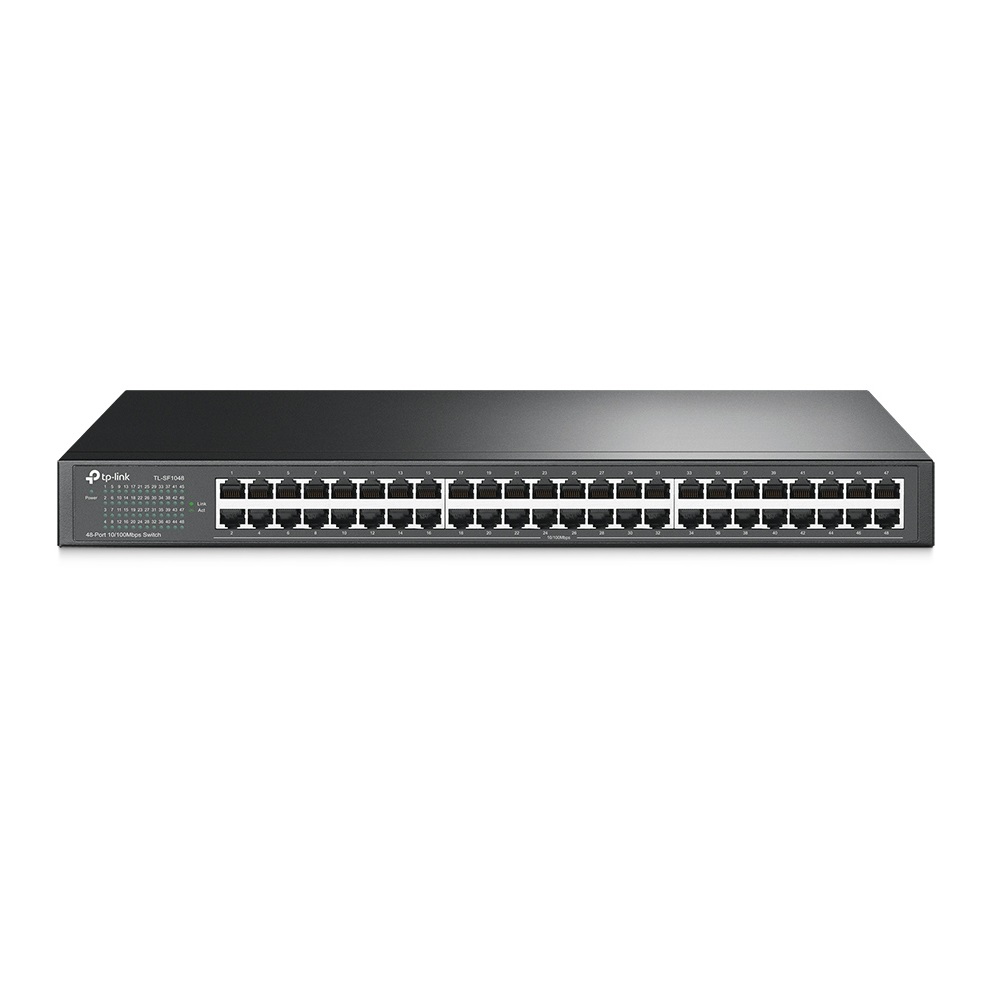

Networking 10/100 Switch 48Port 10/100Mbps Rackmount Switch TP-Link SF1048

48Port 10/100Mbps Rackmount Switch TP-Link SF1048 SKU: 102316

1+
$139.00
1+
$139.00
1+
$139.00

Warranty: 1 Year

  • 30-day money back guarantee
  • No restocking fee
  • Safe SSL encrypted shopping

Description

TP-Link product page:SF1048




The TL-SF1048 Ethernet Switch provides 48 10/100M Auto-Negotiation RJ45 ports. All RJ45 ports support the Auto-MDI/MDIX function. Every port can works as uplink port or common port. TL-SF1048 Ethernet Switch provides a cost-effective, high performance, non-disruptive, smooth evolution into 100M solution. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing greater flexibility, installation convenience.

* 48 10/100M RJ45 ports.
* Supports MAC address self-learning and auto MDI/MDIX.
* Standard 19-inch rack-mountable steel case.

Standards and Protocols
 IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
Basic Function
 Wire-speed Performance
 MAC Address Auto-Learning and Auto-aging
 IEEE802.3x flow control for Full-Duplex Mode and
backpressure for Half-Duplex Mode
Backbound Bandwidth
 9.6Gbps
MAC Address Table
 8k
Forwarding Rate
 10BASE-T: 14880pps/port
 100BASE-TX: 148800pps/port
Transmission Method
 Store-and-Forward
Ports
 48 10/100Mbps Auto-Negotiation RJ45 ports (Auto
MDI/MDIX)<�/DIV>
Network Media
 10Base-T: UTP category 3, 4, 5 cable (maximum
100m)
 EIA/TIA-568 100 ohm STP (maximum 100m)
 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
 EIA/TIA-568 100 ohm STP (maximum 100m)
LED Indicators
 Power, Link/Act
Safety & Emission
 FCC, CE
Dimensions (W*D*H)
 17.3 x 10.2 x 1.7 in. (440 x 260 x 44 mm)
Environment
 Operating Temperature: 0C~40C (32F~104F)
 Storage Temperature: -40C~70C (-40F~158F)
 Operating Humidity: 10%~90% non-condensing
 Storage Humidity: 5%~90% non-condensing
Power
 100-240VAC, 50/60Hz



1+
$139.00
1+
$139.00
1+
$139.00

Warranty: 1 Year

  • 30-day money back guarantee
  • No restocking fee
  • Safe SSL encrypted shopping
