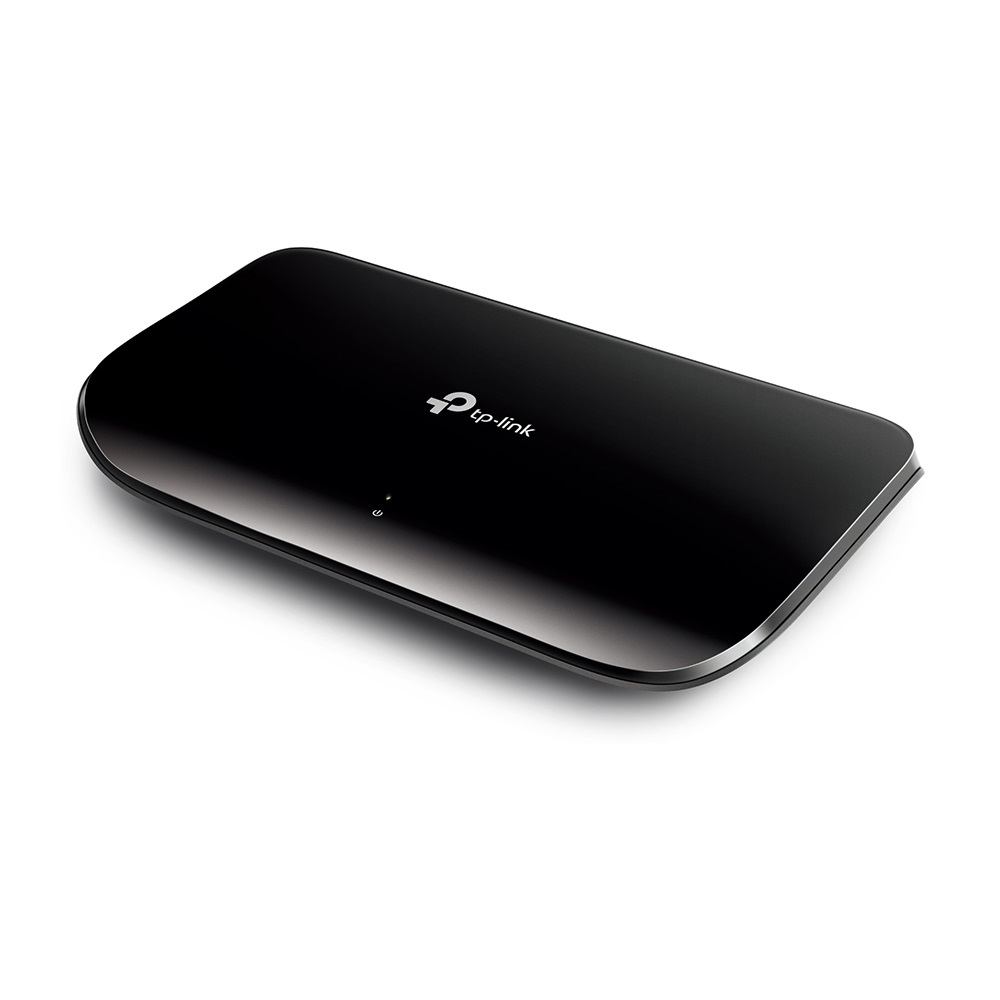

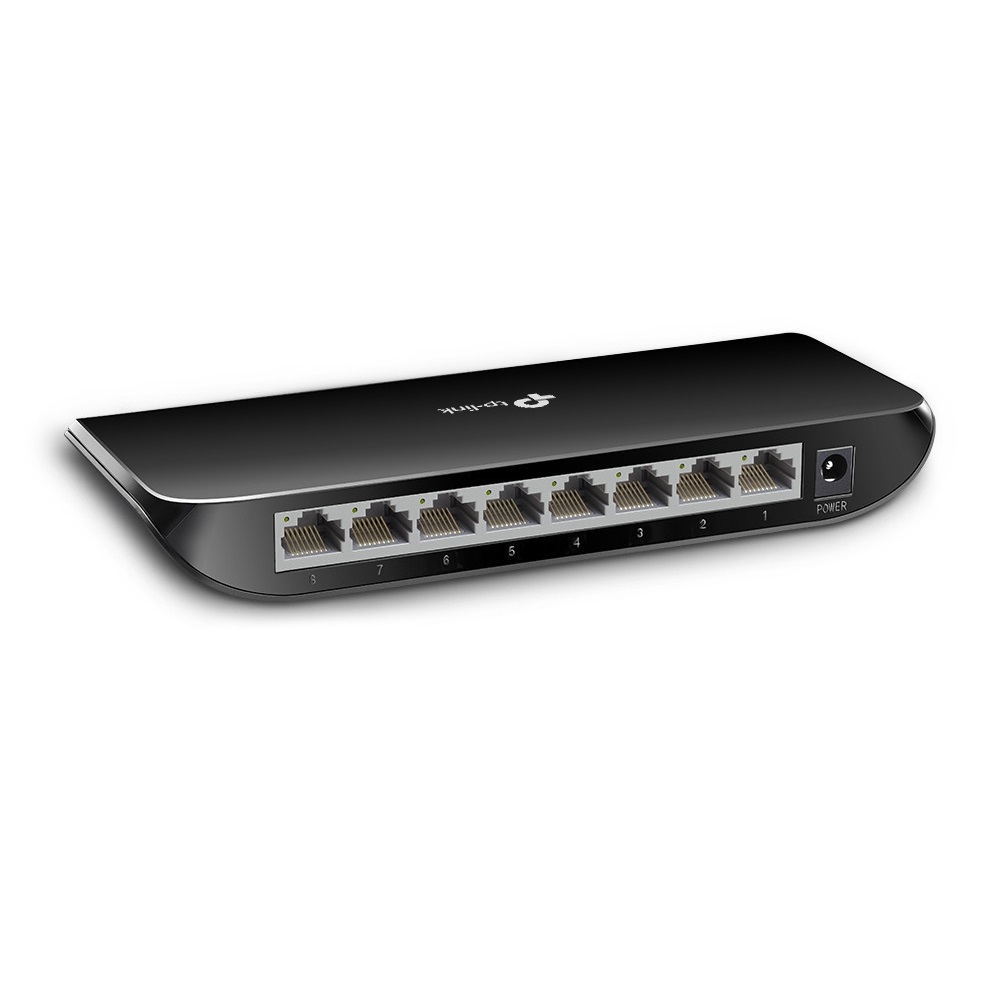

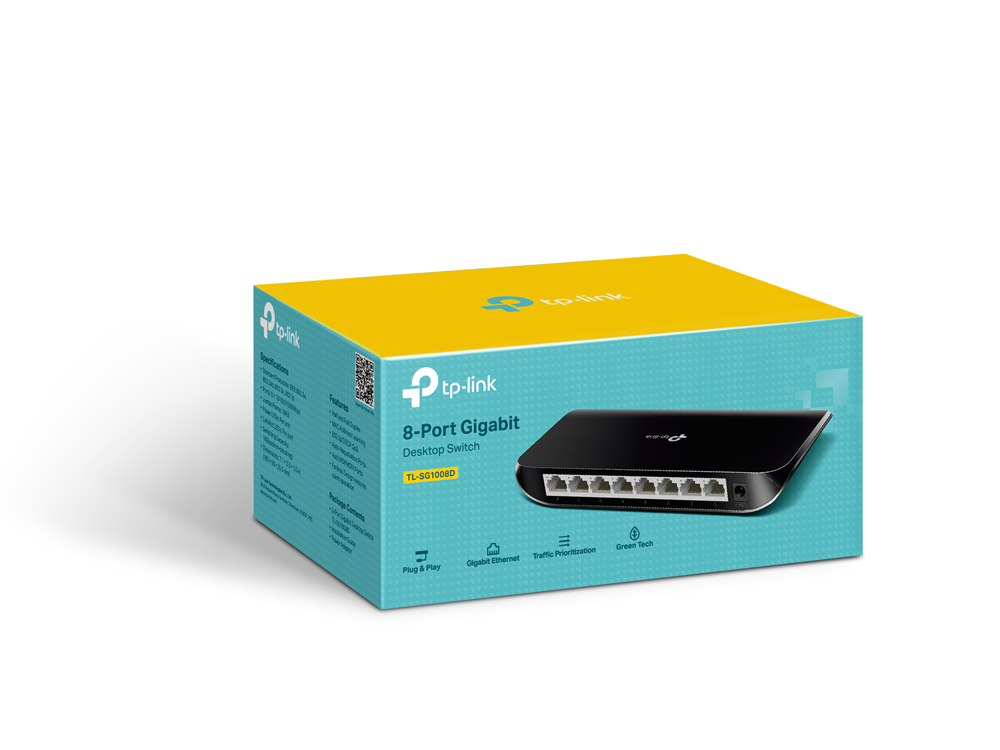

Networking 1G Unmanaged Switch 8Port 10/100/1000Mbps Desktop Gigabit Switch TP-Link SG1008D

8Port 10/100/1000Mbps Desktop Gigabit Switch TP-Link SG1008D SKU: 102308

1+
$24.99
4+
$24.49
12+
$24.00

Warranty: 1 Year

  • 30-day money back guarantee
  • No restocking fee
  • Safe SSL encrypted shopping

Description

Manufacturer product page:TP-Link SG1008D

The SG1008D 8-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files and other applications that have to move large files across the network almost instantly.

* Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
* Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
* Supports MAC address auto-learning and auto-aging
* LED indicators for monitoring power, link, activity
* Plastic case, desktop or wall-mounting design
* External power adapter supply (power supply included)

Standards and Protocols
 IEEE802.3, 802.3u, 802.3ab, 802.3x
 CSMA/CD, TCP/IP
Basic Function
 Wire-speed Performance
 MAC Address Auto-Learning and Auto-aging
 IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth
 16Gbps
MAC Address Table
 4k
Forwarding Rate
 10BASE-T: 14880pps/port
 100BASE-TX: 148800pps/port
 1000BASE-T: 1488000pps/port
Transmission Method
 Store-and-Forward
Ports
 8 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
 EIA/TIA-568 100 ohm STP (maximum 100m)
 100Base-Tx: UTP Cat.5E cable (maximum 100m)
 EIA/TIA-568 100 ohm STP (maximum 100m)
 1000Base-T: UTP Cat.5E cable (maximum 100m)
LED Indicators
 Power, 10/100M, 1000M
Safety & Emission
 FCC, CE
Dimensions (W*D*H)
 7.9*5.5*1.1 in. (200*140*28 mm)
Environment
 Operating Temperature: 0C~40C (32F~104F)
 Storage Temperature: -40C~70C (-40F~158F)
 Operating Humidity: 10%~90% non-condensing
 Storage Humidity: 5%~90% non-condensing
Power
 External Power Adapter
